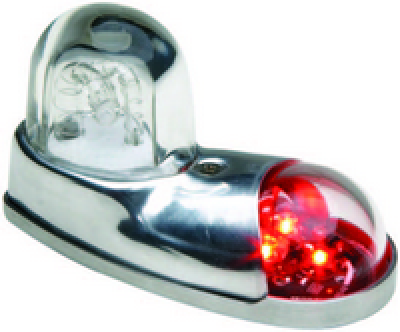

Whelen Model 71110 Series Anti-Collision LED Position Light Assembly
Overview

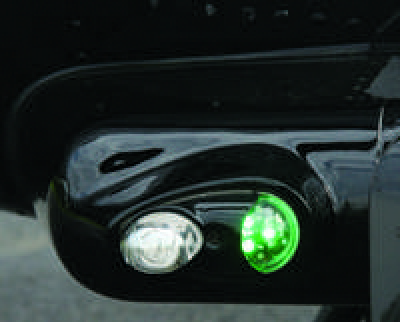

| 71110 series is a wing tip mounted strobe anti-collision/position light assembly utilizing LED's for the forward position lights. The LED's provide a significant reduction in current draw over conventional position light bulbs. The strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model A650PG/PR series without replacing the current strobe power supply. Navigation light portion is wired with flying leads. |
Reference Chart
(FAA TSO-C96a / TSO-C30c Type II) | ||
(FAA TSO-C96a / TSO-C30c Type I) | ||
(FAA TSO-C96a / TSO-C30c Type II) | ||
(FAA TSO-C96a / TSO-C30c Type I) |
Specifications
- LED Colors: Aviation Red, Aviation Green
- LED Navigation Light Power Consumption: 0.25 amps @ 14 VDC or 28 VDC
- Weight: 0.45 lbs. (204gm) 14 VDC, 0.50 lbs. (227gm) 28 VDC
- Exposed Height: 2.70” (69mm)
- Lens: Clear RFI coated glass: strobe, Clear Polycarbonate: Navigation Lights
Reviews
good value
Verified Purchase
Whelen 7111004 28V Red Wingtip
As advertised.
Except for the outrageous $, just outstanding!
Simple unit, easy to install,works fine, way overprice! Bought same unit 3 years ago for less than 1/2 the price.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For the 71110 series wingtip lights you can use the HDACF power supply. 11-16218 is the part number for the HDACF. The Microburst 1 does not require a power supply and can be run off of 14 volts DC.
For the 71110 series wingtip lights you can use the HDACF power supply. 11-16218 is the part number for the HDACF. The Microburst 1 does not require a power supply and can be run off of 14 volts DC.
The Whelen Model 71110 series anti-collision LED position lights are a direct replacement (exact footprint) for the Whelen Model A650PG/PR series and replacing the current strobe power supply is not necessary.
Yes, just select the color of the nav light, and voltage. It is sold as an assembly.
The power supply would be fine for both flash tubes but the footprint of these are different. If the 1285 wingtip calls for an A427 you must use that or the cover and lens may not fit.
