Whelen Post Light Head Assembly Inst.White Model A354Iwbk
MFR Model# 02-0350281-00
| Model # | Description | Part Number |
|---|---|---|
| *A354 | Head Assembly | 11-00014 |
Overview
|

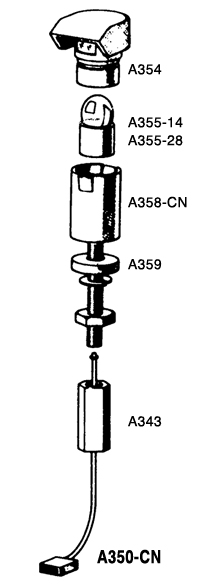

WHELEN STROBE SYSTEM A350-CN * Requires dash numbers for lens color and finish. Please contact factory. |
Reference Chart
Reviews
Converted the red colored lenses to white on my Pa23-250.
After 19 years in service, the plastic heads are beginning to break off, these are exact replacements. I wanted to add several cases of oil to the order but the freight rates were so high that I found another supplier.
These would be too expensive at half the price! BUT, when compared to crashing because you cant see a key instrument in the dark, I suppose the cost isnt so bad. What can you do, its aviation!
This item was very pricey and did not include the bulb. The quality was very good.
Couldnt tell that they were so short and nothing more than a metal ring with plastic cover. Need to find another solution because they arent long enough to extend beyond my dash plastic.
Verified Purchase
Whelen Post Light Head Assembly Inst.White Model A354Iwbk
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The parts listed on this page are head assemblies only. They are intended as replacement parts on the A350-14 (14V) or A350-28 (28V).
The replacement lamps for this assembly would be GE-327 or GE-330. We have added them to the accessories tab on this page.
The difference between the two is the lens. This would change and not the actual hood post itself. The hood post would still be black no matter which color you get. What changes is the lens inside the post. The instrument white has a blue tint, and clear is a bright white.
Yes, this light can be dimmed.
It is designed to replace one of the mounting screws on an instrument so you wouldn't need to drill a hole into the panel. If they wanted to mount it to the panel directly its the diameter of a 6-32 screw(.138".)
Per Whelen there are too many grimes lights to be sure, and they recommend replacing the whole assembly.
There is not a replacement LED head for this series, but Whelen does make replacement led post lights, like the 71450 series.
This measures to .315" OD for the socket.
