- Photo may represent series and not specific product
- SHARE
| MFG Model # | Description | Part No. | Price | Buy |
|---|---|---|---|---|
| A470AR | Standard assembly, red lens (FAA/PMA) | 11-03273 | $487.00 | |
| A470AW | Standard assembly, white lens (FAA/PMA) | 11-03277 | $431.00 | |
| A470AS | Standard assembly, split red/white lens (FAA/PMA) | 11-03259 | $446.00 | |
| A470ADR | Radio-shielded assembly, red lens (FAA/PMA) | 11-03714 | $513.00 | |
| A470DW | Radio-shielded assembly, white lens (FAA/PMA) | 11-03291 | $470.00 | |
| A470ADS | Radio-shielded assembly, split red/white lens (FAA/PMA) | 11-04976 | $450.00 |
Overview

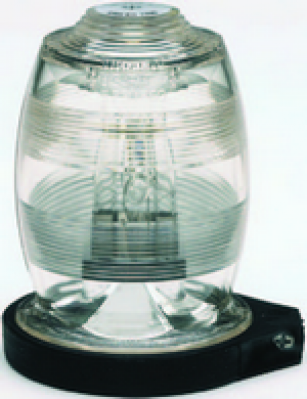

| A470A series remote strobe light assembly is compatible with all Whelen power supplies. It can be installed on the fuselage or the vertical fin. The unique polycarbonate optic lens and reflector design, re-directs stray light rays into the horizontal plane to provide the maximum 360º of uniform light coverage possible. Available in three different lens colors, aviation red, aviation white and split aviation red/white. Available in radio-shielded configurations. All assemblies require either the model H102 or H103 mounting adapter. |
Specifications
- Drawing Number: 70019
- Weight: 0.3 lbs. (136gm)
- Exposed Height: 3.75” (95mm)
- Diameter: 2.5” (64mm)
Reviews
Great design. My lens and strobe came off when the plastic clamp failed from age. (Ill make that an inspection item) Easy plug-in repair.
Verified Purchase
Whelen A470Ads Strobe Head Assembly
Very good light, fit perfectly as a replacement.
Verified Purchase
Whelen A470As Red/White
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer, no, this unit is capable of running off of most power supplies. There is no one specific power supply for it. For example, WHELEN HDACF POWER SUPPLY (part # 11-16218) would work fine.
This part comes with the amp connector installed.
