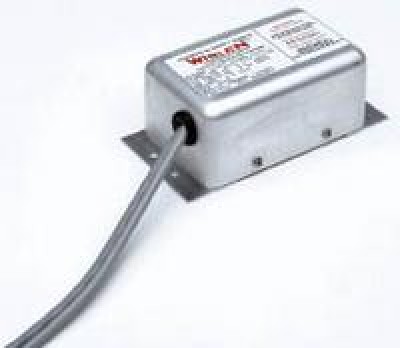

Whelen Power Supplies Model A490TCF

$1337.00/Each
Quantity
Add to Wishlist
Part# 11-14714
MFR Model# 01-0770006-08

Overview

A490TCF series operates one strobe lighthead. It is our most compact unit and can be mounted in the wing tip and/or the tail adjacent to the lighthead. It produces an accumulated 19 joules of power. It will only meet 400 CP when used with the A470A-W. This unit cannot be synchronized. This power supply operates from 10 to 30 VDC (not approved for use with red strobe light).

FAA/PMA Power Supply with 20” leads, amp connectors.

Specifications

  • Drawing Number: 70006
  • Power Consumption: 1.7 amps @ 14 VDC; 0.85 amps @ 28 VDC
  • Weight: 1.2 lbs. (544gm)
  • Length: 5.0” (127mm)
  • Width: 3.12” (79mm)
  • Height: 2.38” (60mm)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I installed it and it worked. Hopefully this one doesn’t fail because they are quite pricy!

Js
July 7, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this Whelen power supply work with any Whelen flashtube assembly?

Yes, that is correct.
