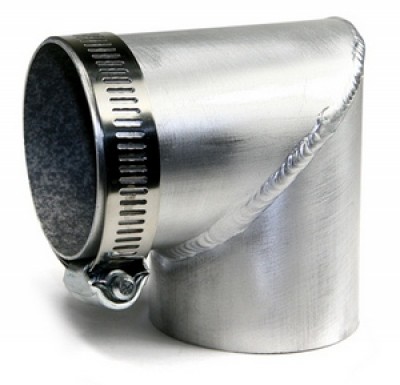

This unit is designed to slide over the end of the 2” O.D. tube protruding from a cabin heat box that extends through the firewall. The short end of this unit is expanded to 2” I.D. One stainless steel clamp is furnished with the unit. If you use scat tube, the 90° angle allows you to run the scat tube parallel to the firewall and away from undesirable areas (brake pedals, etc.) Constructed of seamless 6061T4 .028 wall tube. Weight: 1.4 oz. |
Exactly what i needed. Great service.
2 Dia 90 Deg Tube
Product worked perfect. Good quality of manufacturing process. Good delivery times by Spruce.
2 Dia 90 Deg Tube
Just what I was looking for. Appears to be well made.
2 Dia 90 Deg Tube
A great little device to connect SCAT tubing to muffler for heat.
Used this on my RV-7 with a Vetterman Exhaust system & 2-pipe heater muff. One of the SCAT hoses was rubbing up against the engine mounts...used this tube ell to get it routed in the clear. Had to shorten one side of the ell just a bit for clearance, but this did the trick.
Just what I was looking for.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Referring to the photo on the website: The height from the back end would measure to 2.926".
