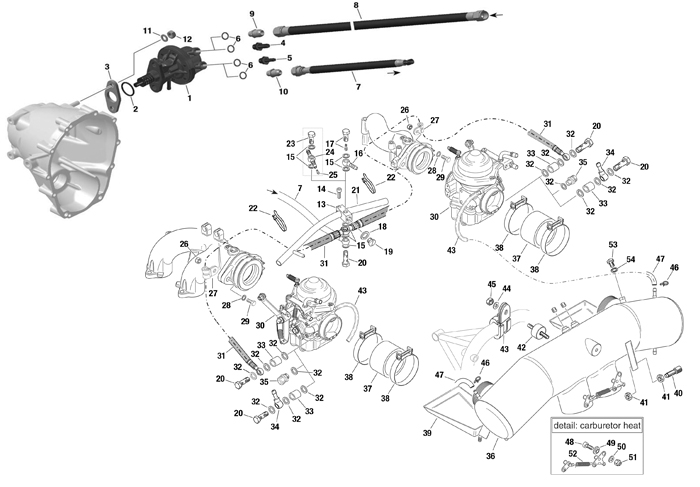

No. | Rotax Number | Description | Qty 912 UL | Qty 912 ULS | Part Number | Price | Buy |
---|---|---|---|---|---|---|---|
13 | 851-328 | FUEL DISTRIBUTION BLOCK | (1) | (1) | 15-10667 | $358.00 | |
16 | 956-312 | HOSE NIPPLE 3/4 | (1) | (1) | 15-03527 | $30.80 | |
19 | 641-733 | SLOTTED HEAD SCREW M10X1X8 | (1) | (1) | 15-00671 | $10.50 | |
22 | 866-716 | CABLE TIE 550X8.0 | (2) | (2) | 15-01870 | $0.63 | |
23 | 941-780 | BANJO BOLT M8X1X17 | (1) | (1) | 15-03278 | $10.50 | |
35 | 941-853 | FUEL LINE CONNECTOR | 1j | 1j | 15-03286 | $81.75 | |
41 | 942-541 | HEX. NUT M6x0.75 HIGHT 3 MM | (2) | (2) | 15-09504 | $9.70 | |
43 | 853-010 | CABLE CLAMP 32/M6 | (1) | (1) | 15-01598 | $11.50 | |
44 | 927-941 | WASHER 6.0/12/1 | (1) | (1) | 15-02997 | $0.65 | |
48 | 241-847 | ALLEN SCREW M5X12 | (1) | (1) | 15-00194 | $26.50 | |
50 | 827-800 | WASHER A 5.5 | (1) | (1) | 15-00860 | $0.41 | |
51 | 842-030 | LOCK NUT M5 | (1) | (1) | 15-01239 | $3.60 | |
53 | 240-771 | HEX.SCREW M6X10 | (1) | (1) | 15-00153 | $0.53 |
Explanations of symbols and statements in part number charts:
|
No. | Status | Part No. | Description | 912 UL | 912 ULS | Price |
1-3,6-10 | s.v. | 867-935 | 893-114 FUEL PUMP ASSEMBLY | 1kl | 1kl | NLA |
21 | xxx-xxx | SEE FIG. 1 / POS. 9 | 1 | 1 | - | |
28 | xxx-xxx | SEE FIG. 1 / POS. 16 | (1) | (1) | - | |
29 | xxx-xxx | SEE FIG. 1 / POS. 17 | (6) | (6) | - | |
30 | xxx-xxx | SEE CHAPT. 73-00-00 FIG. 1 | 1 | 1 | - | |
39 | 874-308 | DRIP TRAY SET | (1)f | * | ||
40 | 241-440 | ADJUSTMENT SCREW M6X0.75 | (1) | (1) | * | |
45 | 842-040 | LOCK NUT M6 | (1) | (1) | * |
