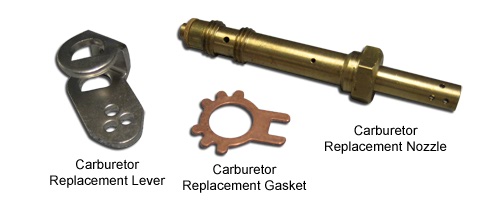

Replacement Parts For Marvel-Schebler Aircraft Carburetors
| Mfg. Ref. | Description | PN | Price | Buy |
|---|---|---|---|---|
| 16-A39 | Gasket | 08-06627 | $8.50 | |
| 16-A42 | Gasket | 08-06628 | $6.60 | |
| 16-A48 | Gasket | 08-06629 | $9.55 | |
| 16-A56 | Gasket | 08-06630 | $26.50 | |
| 16-B44 | Gasket | 08-06635 | $8.95 | |
| 16-B45 | Gasket | 08-06636 | $5.95 | |
| 16-B85 | Gasket | 08-06641 | $8.50 | |
| 17-372 | Rod | 08-06649 | $43.50 | |
| 17-383 | Rod | 08-06650 | $43.75 | |
| 194-580 | Pump Plunger | 08-06938 | $215.95 | |
| 194-591 | Pump Plunger | 08-06939 | $217.95 | |
| 194-593 | Pump Plunger | 08-06940 | $201.95 | |
| 194-605 | Pump Plunger | 08-06941 | $208.95 | |
| 233-614 | Valve & Seat | 08-06971 | $189.90 | |
| 233-615 | Float Valve | 08-06972 | $161.75 | |
| 24-262 | Spring | 08-06651 | $5.35 | |
| 24-A10 | Spring | 08-06655 | $8.50 | |
| 24-A115 | Spring | 08-06656 | $7.50 | |
| 24-A30 | Spring | 08-06659 | $6.95 | |
| 24-A33 | Spring | 08-06660 | $8.65 | |
| 29-182 | Clip | 08-06669 | $29.50 | |
| 32-32 | Shaft | 08-06675 | $40.70 | |
| 32-35 | Shaft | 08-06676 | $34.50 | |
| 34-72 | Valve | 08-06679 | $30.99 | |
| 34-91 | Valve | 08-06680 | $24.99 | |
| 44-220 | Packing O-Ring | 08-06696 | $11.50 | |
| 44-223 | Packing O-Ring | 08-06699 | $14.50 | |
| 44-224 | Packing O-Ring | 08-06701 | $13.50 | |
| 44-49 | Packing O-Ring | 08-06695 | $28.50 | |
| 60-260 | Bushing | 08-06821 | $28.65 | |
| 60-A160 | Bushing | 08-06824 | $42.80 | |
| 778-1003 | Throttle | 08-06535 | $334.00 | |
| 778-1004 | Throttle | 08-06536 | $255.95 | |
| 15-483 | Screw | 08-06590 | $3.50 | |
| 15-58 | Screw | 08-06585 | $4.35 | |
| 15-A23 | Screw | 08-06598 | $4.35 | |
| 15-B108 | Screw | 08-06609 | $6.95 | |
| 15-B109 | Screw | 08-06610 | $6.50 | |
| 15-B98 | Screw | 08-06607 | $10.50 | |
| 16-222 | Gasket | 08-06617 | $14.50 | |
| 16-224 | Gasket | 08-06619 | $5.90 | |
| 16-625 | Gasket | 08-06413 | $153.75 | |
| 16-646 | Gasket | 08-06415 | $159.75 | |
| 16-653 | Gasket | 08-06416 | $81.75 | |
| 16-696 | Gasket | 08-06419 | $79.75 | |
| 16-713 | Gasket | 08-06422 | $63.75 | |
| 16-735 | Gasket | 08-06425 | $63.75 | |
| 16-A107 | Gasket | 08-06631 | $6.50 | |
| 16-A108 | Gasket | 08-06632 | $5.99 | |
| 16-A16 | Gasket | 08-06621 | $5.99 | |
| 16-A28 | Gasket | 08-06622 | $5.99 | |
| 16-A30 | Gasket | 08-06623 | $8.50 | |
| 16-A31 | Gasket | 08-06624 | $10.50 | |
| 16-A32 | Gasket | 08-06625 | $6.90 | |
| 16-A36 | Gasket | 08-06626 | $8.80 | |
| 82-1 | Cotter Pin | 08-06878 | $2.19 | |
| 82-11 | Cotter Pin | 08-06880 | $2.35 | |
| 82-14 | Cotter Pin | 08-06881 | $2.27 | |
| 99-44 | Plug | 08-06896 | $17.50 | |
| 47-851-F | Nozzle | 08-13827 | $254.95 | |
| 47-852 | Nozzle | 08-06771 | $370.00 | |
| 778-1005 | Throttle Shaft | 08-06537 | $318.00 | |
| 778-1006 | Throttle Shaft | 08-06538 | $316.00 | |
| 778-1008 | Throttle Shaft | 08-06540 | $319.00 | |
| 78-121 | Washer | 08-06842 | $4.50 | |
| 78-388 | Washer | 08-06847 | $2.35 | |
| 78-A109 | Washer | 08-06853 | $6.60 | |
| 78-A110 | Washer | 08-06854 | $6.60 | |
| 78-A111 | Washer | 08-06855 | $6.60 | |
| 78-A40 | Washer | 08-06851 | $4.35 | |
| 78-A97 | Washer | 08-06852 | $6.60 | |
| 81-311 | Nut | 08-06877 | $7.50 | |
| 13-1519 | Throttle Shaft | 08-06568 | $361.00 | |
| 13-1520 | Throttle Shaft | 08-06569 | $302.00 | |
| 13-1521 | Throttle Shaft | 08-06570 | $271.95 | |
| 13-1522 | Throttle Shaft | 08-06571 | $349.00 | |
| 13-1523 | Throttle Shaft | 08-06572 | $337.00 | |
| 13-1531 | Throttle Shaft | 08-06575 | $346.00 | |
| 13-1533 | Throttle Shaft | 08-06576 | $401.00 | |
| 155-226 | Lever | 08-06912 | $29.85 | |
| 155-307 | Lever | 08-06914 | $60.75 | |
| 15-126 | Screw | 08-06587 | $10.50 | |
| 43-648 | Needle | 08-06691 | $59.75 | |
| 43-564 | Needle | 08-06690 | $109.90 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
| These replacement parts are manufactured by Marvel Schebler and intended for use with a Marvel Schebler carburetor. |
Reviews
Verified Purchase
16-A28 Marvel Schebler Gasket
Works great.
Verified Purchase
16-A48 Marvel Schebler Gasket
This is the football-shaped gasket for the fuel strainer housing
Verified Purchase
16-A16 Marvel Schebler Gasket
Verified Purchase
78-A109 Marvel Schebler Washer
Verified Purchase
78-A110 Marvel Schebler Washer
Verified Purchase
16-A36 Marvel Schebler Gasket
Verified Purchase
44-223 Marvel Schebler O-Ring
Verified Purchase
233-615 Marvel Schebler Float Valve Asy
Verified Purchase
194-580 Marvel Schebler Pump Plunger Assembly
Verified Purchase
82-11 Marvel Schebler Cotter Pin
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
ID is .56" and the OD is .81".
The gasket kit contains the following:
- 16-A16 strainer vent gasket
- 16-A30 nozzle gasket
- 16-A31 body to bowl gasket
- 16-A32 float seat gasket
- 16-A39 idle adjusting needle retainer gasket
- 16-A42 power jet gasket
- 16-A48 fuel inlet strainer gasket
- 16-A56 air metering pin plug
- 16-B44 pump idler screw gasket
- 44-223 o ring
- 44-224 o ring
