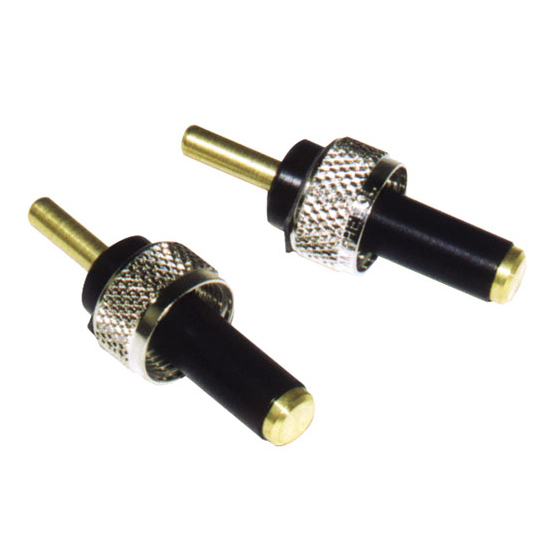

- Photo may represent series and not specific product
- SHARE
Magneto P-Lead Adapter (Early S2 S4 S20)
MFR Model# 8765
Overview
|
For Bendix Early S-20, S-4, and S-6 Magnetos having a .375" diameter by 1.1" long lead. This unique design of the P-lead adapter ensures proper spring pressure against the internal contact. It provides secure and stable alignment, and includes a post that prevents the timer leads from falling off. This adapter allows you to connect to the timer leads of all Bendix magnetos with an immediate and positive connection. One pair per package. 1 lbs (0.5Kg) shipping weight. |
Specifications
- Fits Bendix Magneto Model: Early S-2, S-4, and S-20
- Diameter: .375"
- Length: 1.1"
Reviews
I interpreted the ad. to be $37.50 each which why I bought 4. What I am looking for is teh lead to connect my magneto switch wires to as my previous engine had Slick Magnetos. Disappointing!
Verified Purchase
Magneto P-Lead Adapter (Early S2,S4,S20) # 8765 (Set Of 2)
High quality manufacturing.
Verified Purchase
Magneto P-Lead Adapter (Early S2,S4,S20) # 8765 (Set Of 2)
A+
Verified Purchase
Magneto P-Lead Adapter (Early S2,S4,S20) # 8765 (Set Of 2)
These P-lead adapters work as advertised for early Bendix Mags. How do you know if these work for your Bendix mags? Pull the P-lead Connector out and measure the phenolic barrel. If it measures 3/8, these are the ones. This item provides an easy timing lite attachment for mag timing.
Worked as advertised.
Works perfectly
Its so nice having the right tool for the job. Rather than improvising something like a nail driven lengthwise down a wooden dowel and then wrapping it with tape to get the right snug fit (its been done and it works, but.......). With this nice adapter you just unscrew the P-lead and screw this into the mag in its place. Poof! You have a place to clip your timing box to the mag in order the check the timing. Be sure to measure your particular Bendix mags P-lead since there are multiple sizes. Once you know the diameter and length of the probe on your P-lead connector you can order the correct adapter. Works great!!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is a set of two. This would be for the early Bendix S-20, S-4 and S-6 magneto's having a .375" diameter by 1.1" long lead.
No, these are designed to be used when timing the mags.
