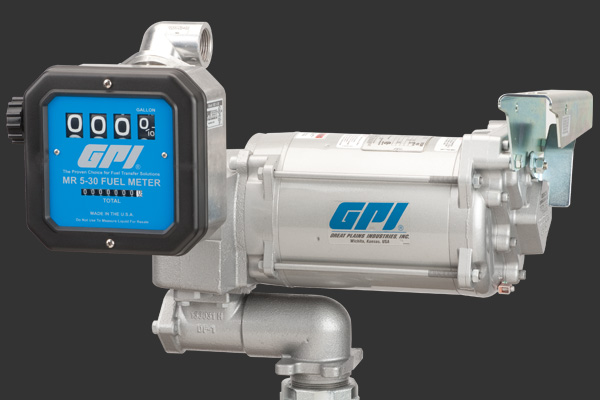

Gpi Refueling Combo Pump / Meter M-3130-AV-Po / Mr 5-30-G8N
$2906.00/Each
Part# 08-07471
MFR Model# 504000-70
MFR Model# 504000-70
Overview
|
GPI REFUELING COMBO PUMP/METER: These pumps & meters are only intended to be ground based or vehicle mounted. Do not use or mount in or on aircraft, may be used with aviation fuel. |
Specifications
- Model: M-3130-AV-PO/MR 5-30-G8N
- Voltage & Type: 115 or 230-volt AC - Vane
- Flowrate: 30 gpm
- Design Type: Nutating Disc
- Duty Cycle: 30 minutes on / 30 minutes off
- Nozzle: None
- Inlet/Outlet Size: 1 1/4 in. / 1 in.
- Bypass Pressure: 50 psi 3.4 bar
- Suction Pipe: none
- Hose: None
- Accuracy: +/- 2% of reading
- Field Calibration: Yes
- Max Batch Digits: 4
- Max Cumulative Digits: 8
- Motor Protection: Internal temperature limiting device
- Current Draw: 9.8 amps
- Unique Feature: Unique strainer and poppet design allows for easy access and maintenance. Large, easy to read display with turn knob reset.
- Use with: Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation gasoline (AVGAS 100LL) and kerosene grade (JET A).
- Approvals: Motor is U.L. Listed to U.S. and Canadian Standards.
- Mfg Warranty: 2 Year
