| Description | Part Number | Price | Buy |
|---|---|---|---|
| Manifold Al Fitting Fab-1-0-2 | 04-00102 | $30.50 | |
| Manifold Al Fitting Fab-1-0-4 | 04-00104 | $37.50 | |
| Manifold Al Fitting Fab-1-0-6 | 04-00106 | $40.55 | |
| Manifold Al Fitting Fab-1-0-8 | 04-00108 | $49.90 | |
| Manifold Al Fitting Fab-1-1-4 | 04-00114 | $29.50 | |
| Manifold Al Fitting Fab-1-1-6 | 04-00116 | $36.90 | |
| Manifold Al Fitting Fab-1-1-8 | 04-00118 | $42.50 | |
| Manifold Al Fitting Fab-1-2-6 | 04-00126 | $32.65 | |
| Manifold Al Fitting Fab-1-2-8 | 04-00128 | $42.50 | |
| Manifold Al Fitting Fab-2-0-2 | 04-00202 | $37.50 | |
| Manifold Al Fitting Fab-2-0-4 | 04-00204 | $47.75 | |
| Manifold Al Fitting Fab-2-0-6 | 04-00206 | $60.75 | |
| Manifold Al Fitting Fab-2-0-8 | 04-00208 | $80.75 | |
| Manifold Al Fitting Fab-2-1-4 | 04-00214 | $40.50 | |
| Manifold Al Fitting Fab-2-1-6 | 04-21600 | $54.95 | |
| Manifold Al Fitting Fab-2-1-8 | 04-21800 | $68.75 | |
| Manifold Al Fitting Fab-2-2-6 | 04-00226 | $51.75 | |
| Manifold Al Fitting Fab-2-2-8 | 04-00228 | $60.75 | |
| Manifold Al Fitting Fab-3-0-2 | 04-00302 | $50.50 | |
| Manifold Al Fitting Fab-3-0-4 | 04-00304 | $64.75 | |
| Manifold Al Fitting Fab-3-0-6 | 04-00306 | $78.75 | |
| Manifold Al Fitting Fab-3-0-8 | 04-00308 | $92.75 | |
| Manifold Al Fitting Fab-3-1-4 | 04-00314 | $51.75 | |
| Manifold Al Fitting Fab-3-1-6 | 04-00316 | $71.75 | |
| Manifold Al Fitting Fab-3-1-8 | 04-00318 | $80.75 | |
| Manifold Al Fitting Fab-3-2-6 | 04-00326 | $72.95 | |
| Manifold Al Fitting Fab-3-2-8 | 04-00328 | $81.85 | |
| Manifold Al Fitting Fab-4-0-2 | 04-00402 | $62.75 | |
| Manifold Al Fitting Fab-4-0-4 | 04-00404 | $71.75 | |
| Manifold Al Fitting Fab-4-1-4 | 04-00414 | $69.75 | |
| Manifold Al Fitting Fab-4-1-6 | 04-00416 | $90.75 | |
| Manifold Al Fitting Fab-4-2-6 | 04-00426 | $80.75 | |
| Manifold Al Fitting Fab-5-0-2 | 04-00502 | $43.85 | |
| Manifold Al Fitting Fab-5-0-4 | 04-00504 | $55.75 | |
| Manifold Al Fitting Fab-5-1-4 | 04-00514 | $48.50 | |
| Manifold Al Fitting Fab-5-1-6 | 04-00516 | $64.85 | |
| Manifold Al Fitting Fab-5-2-6 | 04-00526 | $58.90 | |
| Manifold Al Fitting Fab-5-2-8 | 04-00528 | $74.75 | |
| Manifold Aluminum Fitting 428 | 04-00428 | $92.75 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

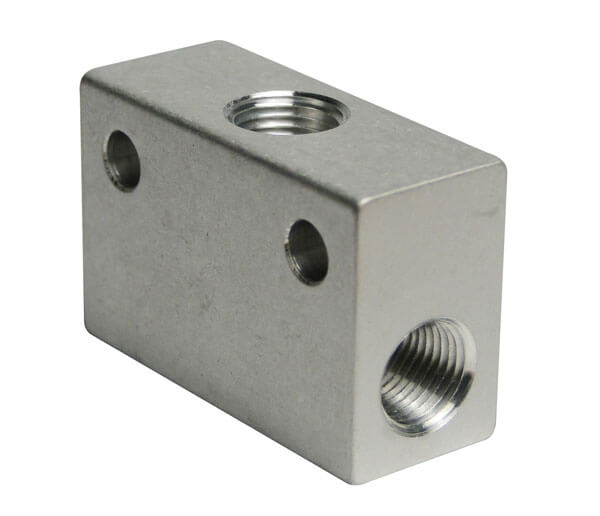

Our aluminum manifold fittings are a bolt-on design with taper pipe threads. These fittings are designed to provide a convenient means of plumbing multiple hoses from and/or to one source with the fitting being bolted to a supporting structure. This design will eliminate Adel clamps at the juncture of the hoses and eliminate additional tee type fittings when more than two hoses are to be connected to one source. Applications include brake reservoir lines, static system, suction systems, fuel systems, air line pigs, smoke systems, and more. Not for use on oxygen systems or pressures over 150 psi. Basic part number on all fittings is 04-00XXX, complete the part number by filling in the last 3 digits after selecting the fitting you need according to the details below. Example: 04 -00102. First Code Number - Determines the style of the fitting. -1: One port in the end with two ports out, 90° cross drilled with one port per side. 3 ports total. Two Mounting Holes. -2: One port in the end with four ports out, 90° cross drilled with two ports per side. 5 ports total. Two Mounting Holes. -3: One port in the end with six ports out, 90° cross drilled with three ports per side. 7 ports total. Four Mounting Holes. -4: One port in the end with eight ports out, 90° cross drilled with four ports per side. 9 ports total. Four Mounting Holes. -5: One port in the end with four ports out, 90° drilling with four ports on one side only. 5 ports total. Two Mounting Holes. Second Code Number - Determines the style of porting. -0: All the ports are the same. -1: Inlet port is one size larger than outlet ports. -2: Inlet port is two sizes larger than outlet ports. Third Code Number - Determines the inlet port size. -2: 1/8-27 taper pipe thread (NPT) -4: 1/4-18 taper pipe thread (NPT) -6: 3/8-18 taper pipe thread (NPT) -8: 1/2-14 taper pipe thread (NPT) In the example above - 04 -00102, this would be a 1/8 NPT inlet with two outlets of the same size. Example - 04 -00326, this would have a 3/8 NPT inlet with six 1/8 NPT outlets. |
Reviews
Verified Purchase
Manifold Al Fitting Fab-5-0-2
Received in timely manner
Verified Purchase
Manifold Al Fitting Fab-2-0-2
Installed as planned. Not yet Opps checked.
Verified Purchase
Manifold Al Fitting Fab-5-0-2
The FAB-5-0-2 is a well made part. It works great with a Garmin G5 installation of the pitot/static system.
Verified Purchase
Manifold Al Fitting Fab-5-0-2
Good quality good price
Verified Purchase
Manifold Al Fitting Fab-2-0-2
Good product. I could have fabricated this item but at the price offered it was not worth my time.
Verified Purchase
Manifold Al Fitting Fab-1-0-4
Well made. Should have mentioned that no plugs are provided to block unused ports.
Great little manifold. I used it for my oil pressure sensor and Hobbs meter pressure switch.
High-quality component. Well constructed. Great for multi-source fuel, vent, hydraulic, or pressure connections.
Nicely machined, multiple uses, good price.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Here are the dimensions: 4-1/2" length x 2" width x 1" height. 7 Port, each port is 3/8" NPT in and 3/8" NPT out.
1.5" L x .630" W x 1" H
Approx dimensions of 04-00206: 2-inch x 1-inch x 3-inch
1.526" L x 1.277" H x .775" W
Something like an AN913 should work. The exact part number would depend on what size you need.
Something like an AN913 should work. The exact part number would depend on what size you need.
In regards to the FAB 1-0-2, the outlet ports are on opposite sides, 1-1/2 apart. These do not have multiple ports on one side. The port spacing on multiple ported models is according to Machinist Handbook to open end wrench spacing. In other words, spacing varies according to the port size.
.200 ID and 1 center to center.
OD 3/8 ID 3/16 THICK .032
2.8L x 1.5H x .623W
