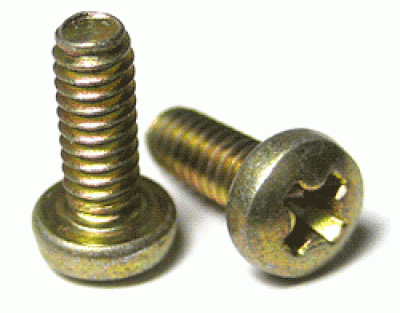

- Photo may represent series and not specific product
- SHARE
| Part No. | Old AN515R Dash No. |
Dia. & Thread Size |
Length (in.) | Price Ea. |
Buy Ea. |
|---|---|---|---|---|---|
MS35206-203 | -2R4 | 2-56 | 1/4 | $0.11 | |
MS35206-204 | -2R5 | 2-56 | 5/16 | $0.13 | |
MS35206-205 | -2R6 | 2-56 | 3/8 | $0.13 | |
MS35206-206 | -2R7 | 2-56 | 7/16 | $0.14 | |
MS35206-207 | -2R8 | 2-56 | 1/2 | $0.11 | |
MS35206-208 | -2R10 | 2-56 | 5/8 | $0.08 | |
MS35206-209 | -2R12 | 2-56 | 3/4 | $0.14 | |
MS35206-212 | -4R3 | 4-40 | 3/16 | $0.13 | |
MS35206-213 | -4R4 | 4-40 | 1/4 | $0.08 | |
MS35206-214 | -4R5 | 4-40 | 5/16 | $0.08 | |
MS35206-215 | -4R6 | 4-40 | 3/8 | $0.10 | |
MS35206-216 | -4R7 | 4-40 | 7/16 | $0.11 | |
MS35206-217 | -4R8 | 4-40 | 1/2 | $0.10 | |
MS35206-218 | -4R10 | 4-40 | 5/8 | $0.17 | |
MS35206-219 | -4R12 | 4-40 | 3/4 | $0.10 | |
MS35206-220 | -4R14 | 4-40 | 7/8 | $0.13 | |
MS35206-221 | -4R16 | 4-40 | 1 | $0.13 | |
MS35206-222 | -4R20 | 4-40 | 1-1/4 | $0.26 | |
MS35206-223 | -4R24 | 4-40 | 1-1/2 | $0.14 | |
MS35206-226 | -6R4 | 6-32 | 1/4 | $0.11 | |
MS35206-227 | -6R5 | 6-32 | 5/16 | $0.10 | |
MS35206-228 | -6R6 | 6-32 | 3/8 | $0.10 | |
MS35206-229 | -6R7 | 6-32 | 7/16 | $0.11 | |
MS35206-230 | -6R8 | 6-32 | 1/2 | $0.08 | |
MS35206-231 | -6R10 | 6-32 | 5/8 | $0.13 | |
MS35206-232 | -6R12 | 6-32 | 3/4 | $0.13 | |
MS35206-233 | -6R14 | 6-32 | 7/8 | $0.13 | |
MS35206-234 | -6R16 | 6-32 | 1 | $0.13 | |
MS35206-235 | -6R20 | 6-32 | 1-1/4 | $0.14 | |
MS35206-236 | -6R24 | 6-32 | 1-1/2 | $0.26 | |
MS35206-238 | -6R32 | 6-32 | 2 | $0.30 | |
MS35206-241 | -8R4 | 8-32 | 1/4 | $0.11 | |
MS35206-242 | -8R5 | 8-32 | 5/16 | $0.11 | |
MS35206-243 | -8R6 | 8-32 | 3/8 | $0.11 | |
MS35206-244 | -8R7 | 8-32 | 7/16 | $0.13 | |
MS35206-245 | -8R8 | 8-32 | 1/2 | $0.14 | |
MS35206-246 | -8R10 | 8-32 | 5/8 | $0.17 | |
MS35206-247 | -8R12 | 8-32 | 3/4 | $0.17 | |
MS35206-248 | -8R14 | 8-32 | 7/8 | $0.19 | |
MS35206-249 | -8R16 | 8-32 | 1 | $0.20 | |
MS35206-250 | -8R20 | 8-32 | 1-1/4 | $0.20 | |
MS35206-251 | -8R24 | 8-32 | 1-1/2 | $0.22 | |
MS35206-252 | -8R28 | 8-32 | 1-3/4 | $0.25 | |
MS35206-253 | -8R32 | 8-32 | 2 | $0.45 | |
MS35206-261 | -10R6 | 10-24 | 3/8 | $0.14 | |
MS35206-262 | -10R7 | 10-24 | 7/16 | $0.16 | |
MS35206-263 | -10R8 | 10-24 | 1/2 | $0.17 | |
MS35206-264 | -10R10 | 10-24 | 5/8 | $0.19 | |
MS35206-265 | -10R12 | 10-24 | 3/4 | $0.16 | |
MS35206-266 | -10R14 | 10-24 | 7/8 | $0.19 | |
MS35206-267 | -10R16 | 10-24 | 1 | $0.20 | |
MS35206-279 | -416R8 | 1/4-20 | 1/2 | $0.31 | |
MS35206-280 | -416R10 | 1/4-20 | 5/8 | $0.31 | |
MS35206-281 | -416R12 | 1/4-20 | 3/4 | $0.30 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
These pan head machine screws feature 60,000 psi min. tensile strength & are cadmium plated to specification QQ- P-416, Type 2, Class 3. Manufactured from carbon steel to Federal Standard #66, these screws can be used as replacements for AN526 Truss head & AN515 Round Head. For fine thread #10-32 and 1/4"-28 see MS35207, click here. |
Reviews
Verified Purchase
Machine Screw MS35206-243
Verified Purchase
Machine Screw MS35206-263
Verified Purchase
Machine Screw MS35206-228
Verified Purchase
Machine Screw MS35206-243
Verified Purchase
Machine Screw MS35206-263
Verified Purchase
Machine Screw MS35206-227
High quality hardware.
Verified Purchase
Machine Screw MS35206-248
Not easy to find some screws but Aero performance always has them
Verified Purchase
Machine Screw MS35206-241
Verified Purchase
Machine Screw MS35206-245
Verified Purchase
Machine Screw MS35206-245
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, a 10-32 thread would be considered fine thread, 10-24 is a coarse thread.
Part number MS35206-243 is made of CAD plated steel, and is magnetic. We do not have any ins stock, but we can try to special order AN515B8-6, which is the previous spec to this MS style screw, but made of brass and not magnetic. Please advise how many you need so we can try to locate them for you.
It appears that stainless steel is not an option available per the data sheet. This is only available in carbon steel with either a cadmium plating or a zinc coating.
Yes see part # 04-01357.
The milspec comes up as 10-24 UNC-2A.
