- Photo may represent series and not specific product
- SHARE
| Part No. |
Cap Plug No. |
A-Caps Nominal Thread Size (In) |
Dim B (in.) |
Dim B (mm.) |
Dim C (in.) |
Dim C (mm.) |
Price | Buy |
|---|---|---|---|---|---|---|---|---|
04-00070 | EC-4 | 1/4 | .48 | 12.19 | .50 | 12.70 | $0.43 | |
04-00071 | EC-5 | 5/16 | .55 | 13.97 | .56 | 14.22 | $0.46 | |
04-00072 | EC-6 | 3/8 | .62 | 15.75 | .50 | 12.70 | $0.41 | |
04-00073 | EC-8 | 1/2 | .74 | 18.79 | .50 | 12.70 | $0.56 | |
04-00074 | EC-9 | 9/16 | .78 | 19.81 | .44 | 11.18 | $0.20 | |
04-00075 | EC-10 | 5/8 | .84 | 21.34 | .50 | 12.70 | $0.46 | |
04-00076 | EC-12 | 3/4 | .97 | 24.63 | .50 | 12.70 | $0.43 | |
04-00077 | EC-14 | 7/8 | 1.12 | 28.44 | .50 | 12.70 | $1.35 | |
04-00078 | EC-16 | 1 | 1.22 | 30.98 | .50 | 12.70 | $0.61 |
Overview
|

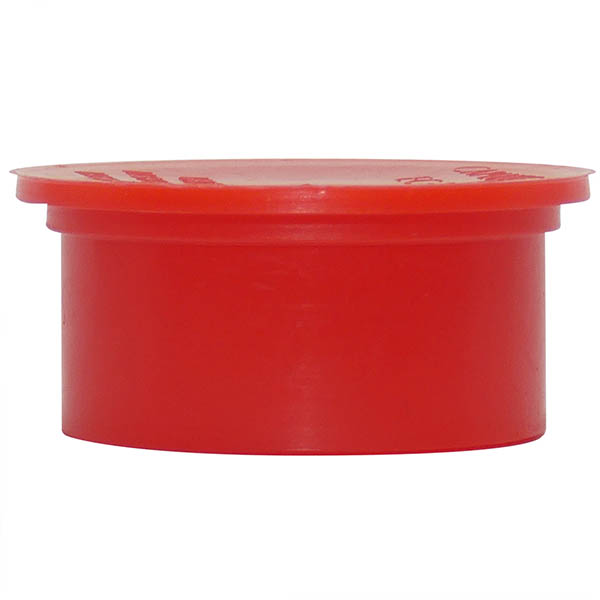

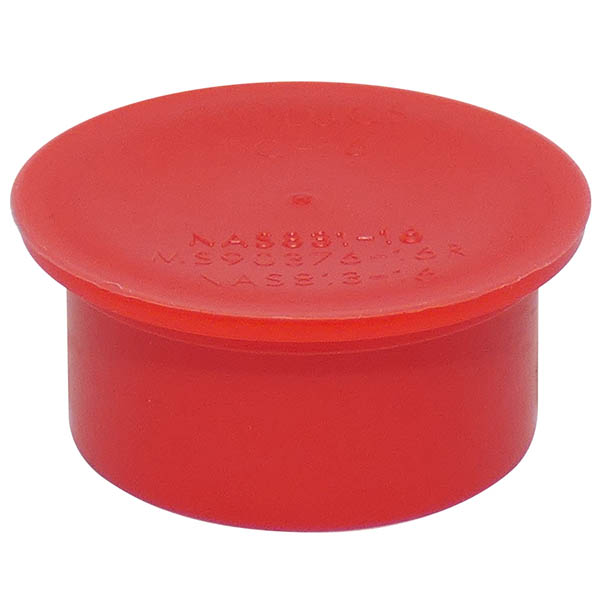

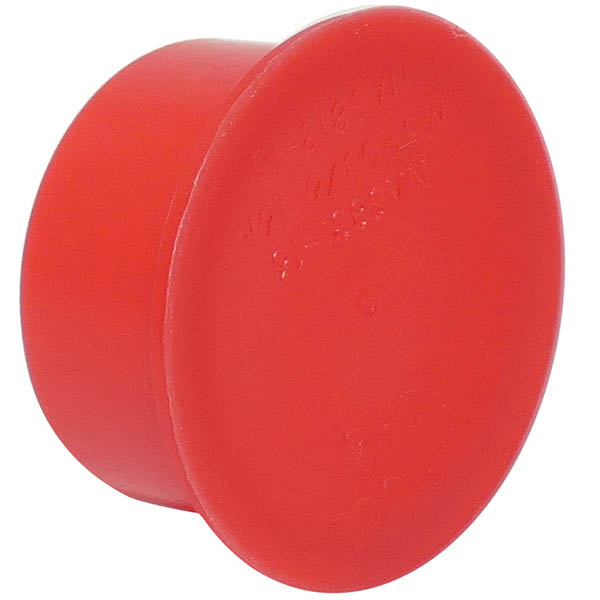

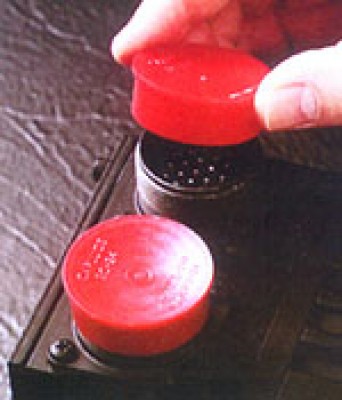

Static dissipative EC Series Cap Plugs provide positive ESD and physical protection for all common sizes of threaded electrical and electronic connectors. Also suitable for protecting non-threaded bayonet-type connectors. Less 20% Discount on 50 Cap Plugs (Same P/N) |
Specifications
Reviews
A great product at a very good price! I would definitely buy from them again.
Verified Purchase
Cap Plugs Ec-9
Satisfied
Verified Purchase
Cap Plugs Ec-16
products were good. ordering easy and shipped quickly EASY
Product is ideal for my use. Fast service
I buy these caps from time to time in several different sizes. They come in handy for capping off the ends of all types of tubing that I encounter in restoring automobiles and trucks. The sky is the limit for what you can use these things for. Pretty darn inexpensive and come in super handy for a multitude of tasks. Aircraft spruce is the place to get these and shipping is always quick. Their customer service is A1.
