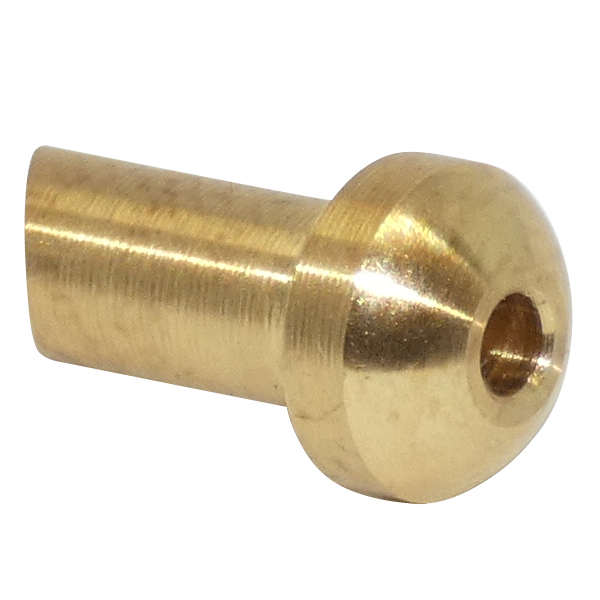

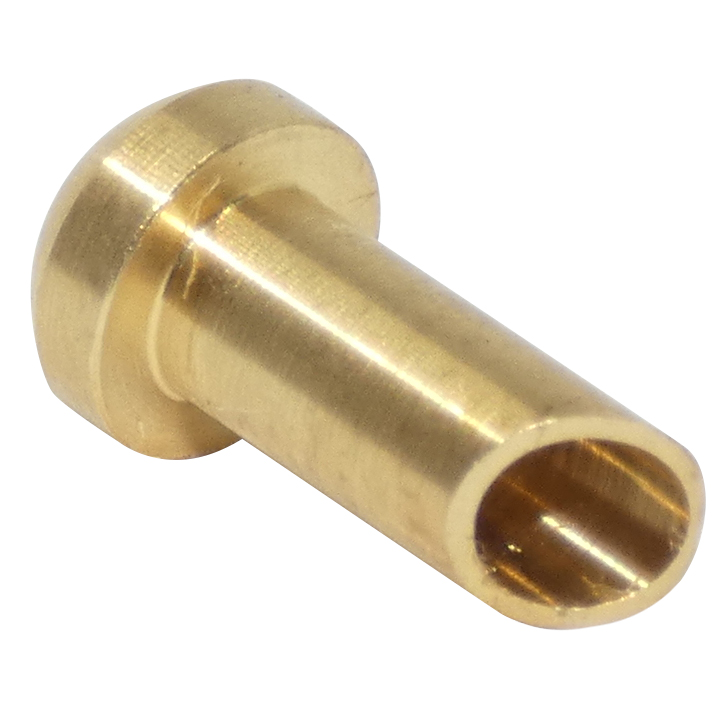

Union Cone AN800-2

19 Reviews 1 Answered Question
$2.15/Piece
Quantity
Add to Wishlist View More In This Series →
Part# AN800-2
MFR Model# AN800-2

Overview

AN Fittings. Union Cone.

Specifications

  • Distance From Flanged End To Tubing Clearance Hole:0.156 inches
  • Flange Face Diameter:0.125 inches
  • Flange Inside Diameter:0.076 inches
  • Flange Outside Diameter:0.265 inches
  • Flange Width:0.125 inches
  • Hose/tube Outside Diameter For Which Designed:0.125 inches
  • Material:Copper alloy
  • Overall Length:0.500 inches
  • Seat Radius:0.141 inches
  • Sleeve Outside Diameter:0.165 inches
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Mike Z Verified Purchase

Union Cone AN800-2
November 12, 2024

Massimiliano B Verified Purchase

Union Cone AN800-2
September 5, 2024

Works as it should

Billy H Verified Purchase

Union Cone AN800-2
August 23, 2024

product was as described and solved a problem of fixing primer lines

Charles T Verified Purchase

Union Cone AN800-2
May 6, 2024

Steve C Verified Purchase

Union Cone AN800-2
March 16, 2024

Rob A Verified Purchase

Union Cone AN800-2
February 13, 2024

Laban H Verified Purchase

Union Cone AN800-2
December 20, 2023

Not used yet but seems correct.

John B Verified Purchase

Union Cone AN800-2
June 13, 2023

Very good

Alain L Verified Purchase

Union Cone AN800-2
May 3, 2023

quick response arrived as ordered works well.

David B Verified Purchase

Union Cone AN800-2
March 14, 2023

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the AN800-2?

Distance From Flanged End To Tubing Clearance Hole:0.156 inches
Flange Face Diameter:0.125 inches
Flange Inside Diameter:0.076 inches
Flange Outside Diameter:0.265 inches
Flange Width:0.125 inches
Hose/tube Outside Diameter For Which Designed:0.125 inches
Material:Copper alloy
Overall Length:0.500 inches
Seat Radius:0.141 inches
Sleeve Outside Diameter:0.165 inches
