AOA Eagle Standard Kit With Hud
Select Model:
Non PressurizedPressurizedOverview
|

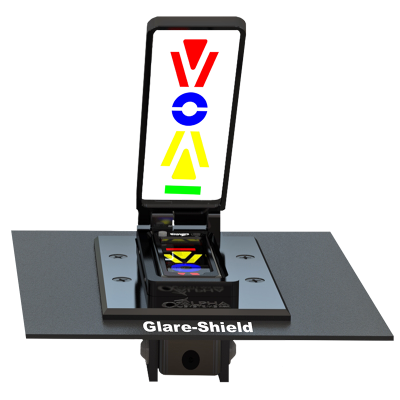

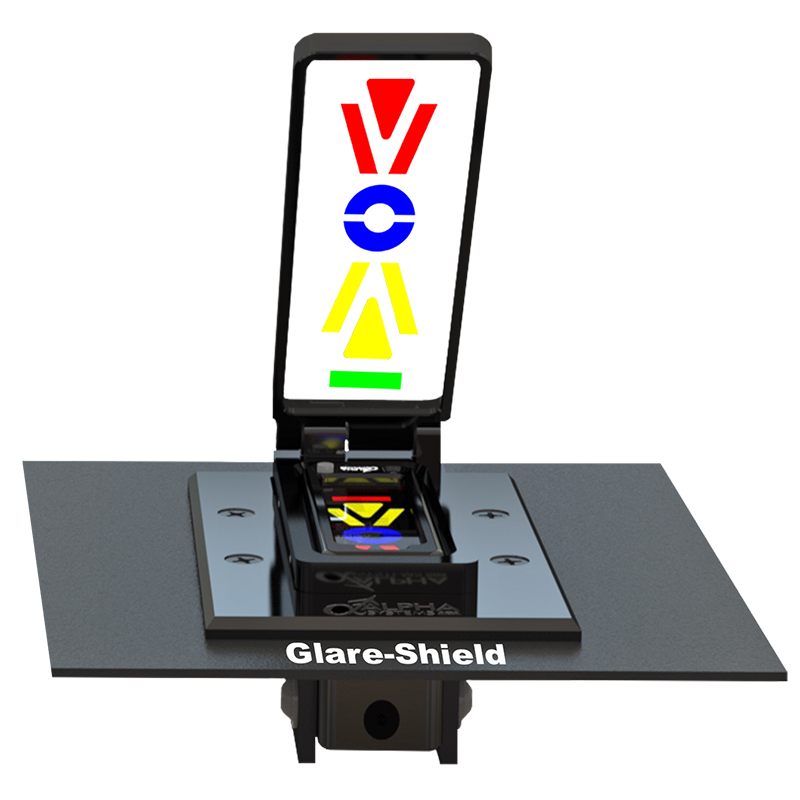

The flush mount HUD is for pilots that want a lower profile HUD on top of their glare-shield. The switch panel must be mounted in the instrument panel. Intended for placement directly in front of the pilot. Allows for instantaneous viewing of AOA information exactly where needed.
The Flush Mount HUD kit sits on top of the Eagle display, showing the display segments in the HUD glass. The Eagle Flush Mount HUD kit comes complete with interface computer, prewired cable/connector harnesses, tubing, cut to fit AOA probe mounting plate, hardware, and flush mount HUD mounting brackets for installation in any aircraft. Our systems are designed for simple installation and pilot flown calibration for real time, instantaneous full-scale AOA range. The Eagle display is a highly visible, full color, chevron style display. With the chevron display, when you come in for a landing you want to fly to the blue donut (on speed for landing). Should you come in with too low of an angle of attack, the yellow chevron will light up and tell you to put your nose up. Should you come in with too high of an angle of attack, the red chevron will light up and tell you nose down. HUD FEATURES The HUD is a self contained adjustable beam splitter adapter that mounts to the lip of the Eagle display and turns the Alpha System AOA into a true HUD. Intended for placement directly within the pilot's peripheral vision. Allows for instantaneous viewing of AOA information exactly where needed. The HUD glass is an enhanced color correcting, anti-glare lens. Comes complete with mounting frame, bezel, display brackets and hardware. Frame Dimensions: L: 4 1/8", W: 1.250" Bezel Dimensions: L: 4" x W: 2.5" |
Features
- Instantaneous Angle of Attack indication.
- Additional indication segments.

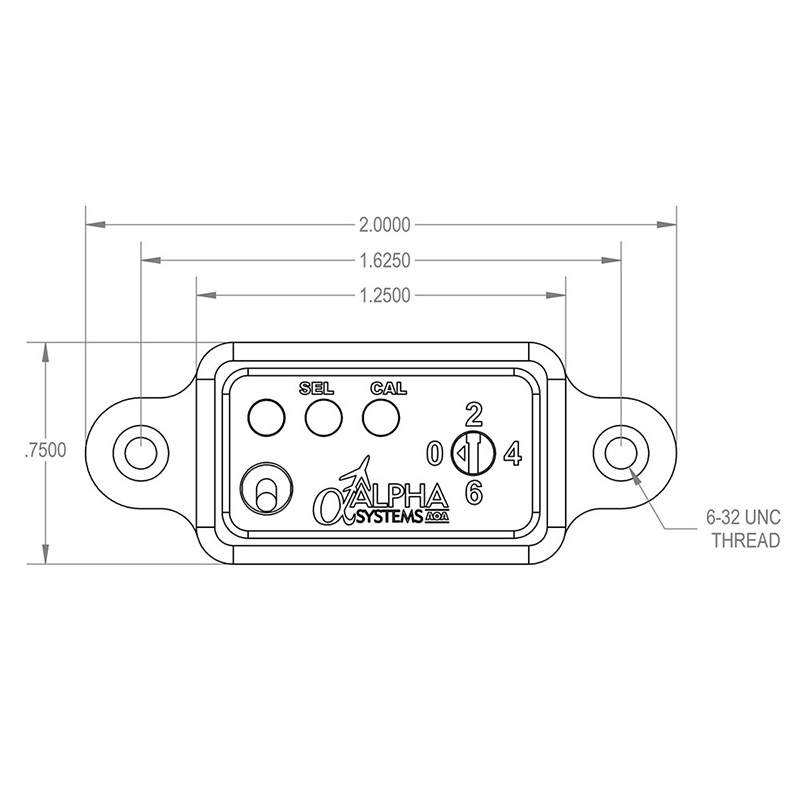

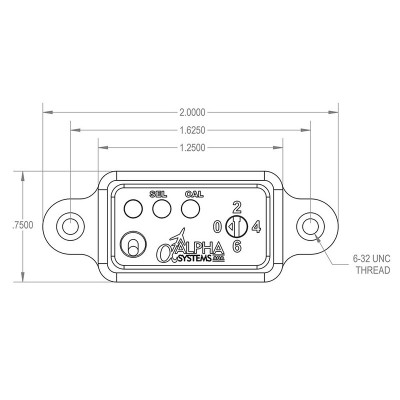

- Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
- 16 different LED brightness levels from ultra dim to very bright.
- Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
- Audio output, tied to existing audio input on audio panel by others.
- 4 different audio options to choose from which is programmed by the end user at the remote switch panel.

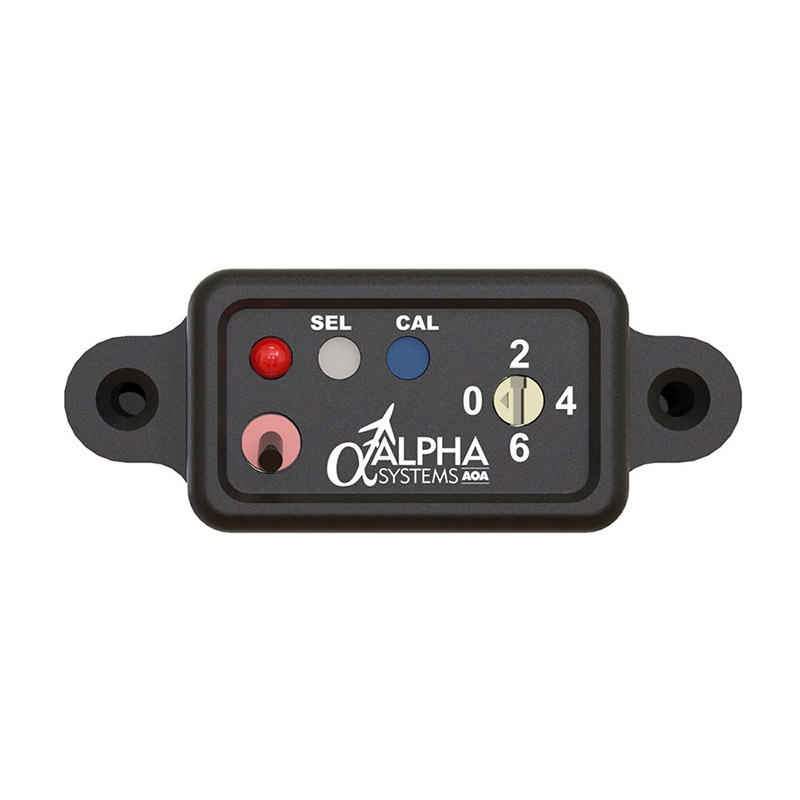

- Audio mute switch with amber LED indicator located on remote switch panel.
- 12-28 VDC input draws less than 0.250 Amps at full brightness.
Specifications
| AOA Interface Module size | In Inches: 5.75 x 2.60 x 1.65 | |
|---|---|---|
| System Voltage Requirements | 12 - 28 Volts DC | |
| System Max Power Draw | 0.250 Amps | |
| System Power Cable | 6 ft, three wires: power, ground and shield | |
| HUD Weight | 3.52 oz / 0.22 Lbs | |
| HUD Frame Dimensions | L: 4 1/8" x W: 1.250" | |
| HUD Bezel Dimensions | L: 4" x W: 2.5" | |
| Heated Probe Voltage Requirements | 12 or 24 VDC (must specify when ordering) | |
| Heated Probe Power Draw | 86 Watts at 12VDC / 172 Watts at 24VDC | |
| Heated Probe Current Draw | 8 Amps at 12VDC and 8 Amps at 24VDC | |
| Heated Probe Power Wire | Supplied by others | |
| Audio Output | 1 Volt P-P max at 300 ohm input impedance | |
| Aux (Audio) Cable | 6 ft, three wires: AP audio, AP ground and shield | |
| Audio Options | Four | |
| Mute Switch | Yes, on switch panel | |
| LED Brightness Levels | 16, from ultra dim to very bright | |
| Photocell Diode | On display, allows for custom daytime/nighttime brightness settings | |
| Pressurized Version | Yes | |
Documents
- Eagle Installation Manual
- Eagle Operations Manual
- The HUD Mounting Guide
- Eagle Pilot's Guide
- Quick Cal Guide for Eagle Display
- Quick Cal Failures for Eagle Display
- Eagle Non Pressurized Connection
- Eagle Display Dimensions
- Eagle Increasing AOA to Display Indications
- Eagle Display Segments Transitions
- HUD Heads Up Kit Dimensions
- HUD Base Adaptor Plate

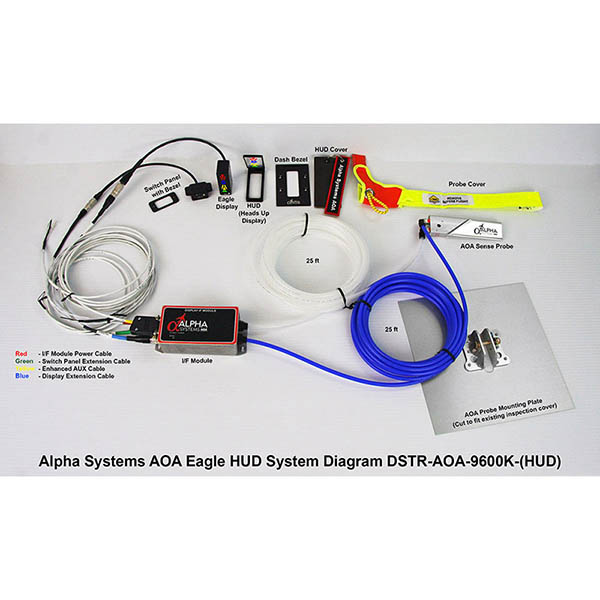

In The Box
- Eagle Display
- Switch Panel Module
- I/F Module
- Non Heated Standard Probe
- Probe Mounting Plate
- HUD (Heads Up Display Adapter)
- HUD Cover
- Power Cable
- Display Extension Cable
- AUX Cable
- Switch Panel Extension Cable
- 25 ft Blue Pneumatic Hose
- 25 ft White Pneumatic Hose
- Eagle Installation Manual
- Eagle Operations Manual
- Protractor
- Probe Cover
- Screwdriver
- Mounting Frame
- Dash Bezel
- Tinted Lens
- Custom Display Brackets
- Hardware
- HUD Cover with Flag
