AOA Falcon Flush Mount Kit With HUD

0 Reviews 0 Answered Questions
Select Model:
Non PressurizedPressurized
Quantity
Add to Wishlist

Overview

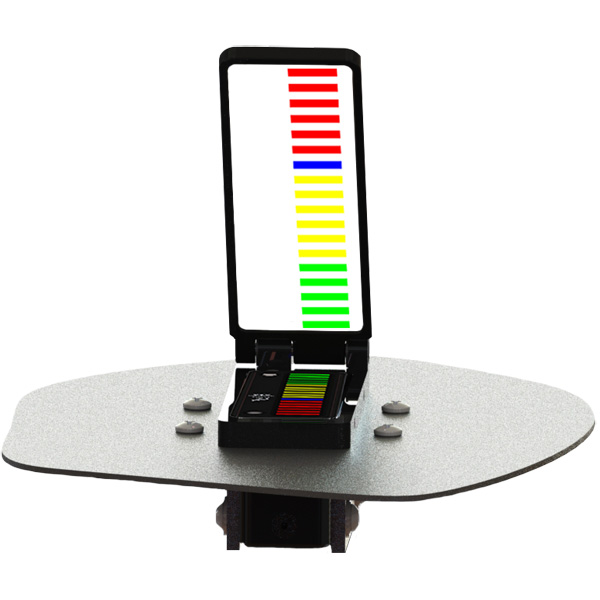

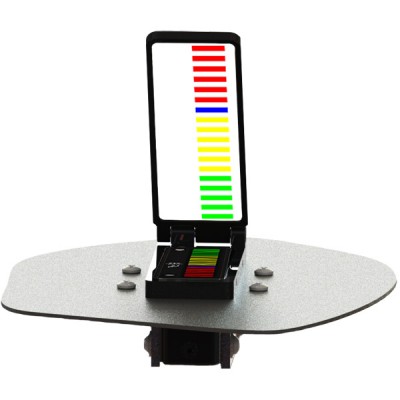

The Falcon kit has a vertical light bar style display. With the vertical light bar display, when you come in for a landing you want to fly to the blue LED (on speed for landing). Should you come in with too low of an angle of attack, the display will illuminate into the yellow, telling you to put your nose up. Should you come in with too high of an angle of attack, the display will illuminate red, telling you to put your nose down. This kit comes with the HUD (Heads Up Display) adapter kit.

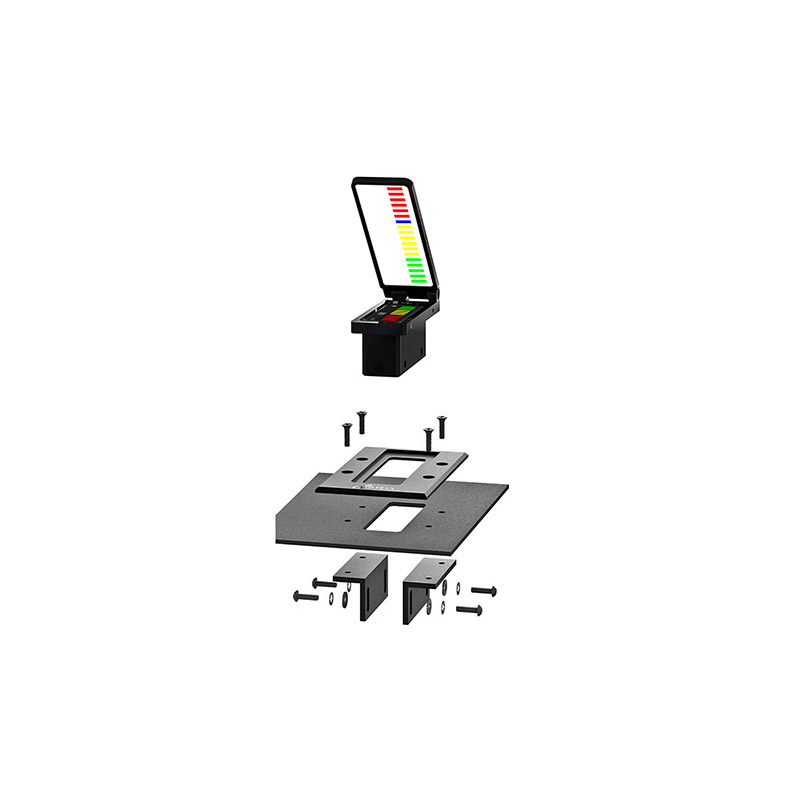

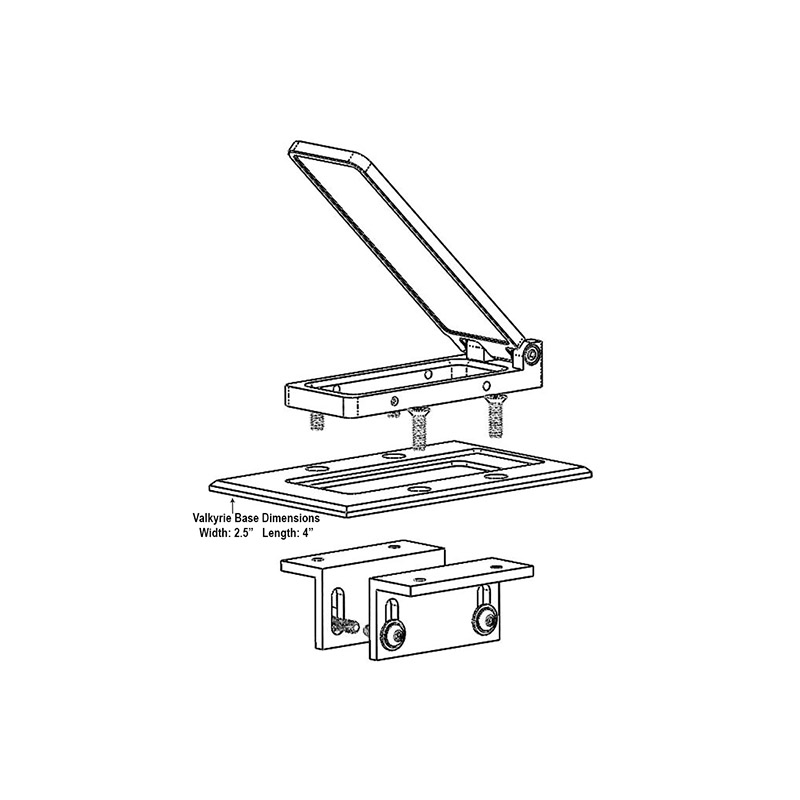

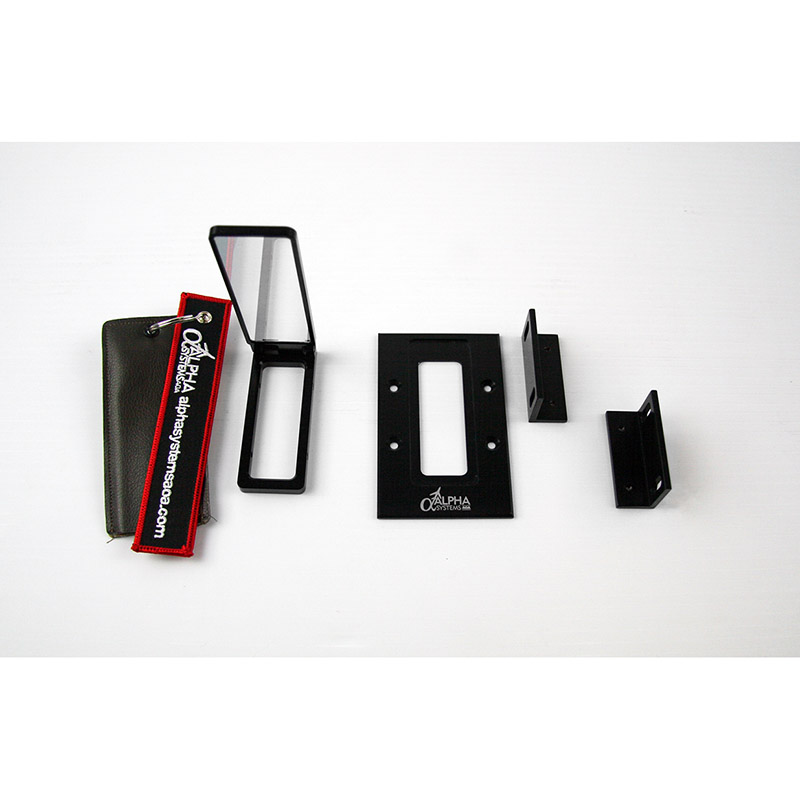

The HUD is a self contained adjustable beam splitter adapter that mounts to the lip of the Falcon display and turns the Alpha System AOA into a true HUD. Intended for placement directly within the pilot's peripheral vision. Allows for instantaneous viewing of AOA information exactly where needed. The HUD glass is an enhanced color correcting, anti-glare lens. Comes complete with mounting frame, bezel, display brackets and hardware.

Features

  • KIT FEATURES -
  • Instantaneous Angle of Attack indication.
  • Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
  • 16 different LED brightness levels from ultra dim to very bright.
  • Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
  • Audio output, tied to existing audio input on audio panel by others.
  • 4 different audio options to choose from which is programmed by the end user at the remote switch panel.
  • Audio mute switch with amber LED indicator located on remote switch panel.
  • 12-28 VDC input draws less than 0.250 Amps at full brightness.
  • HUD FEATURES -

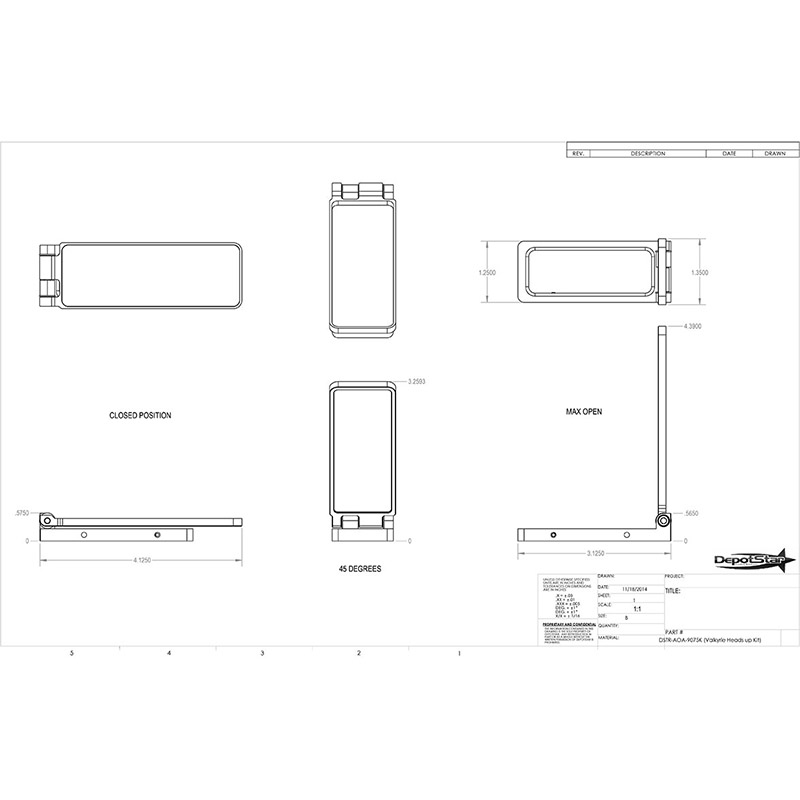

  • Frame Dimensions: L: 4 1/8", W: 1.250"
  • Bezel Dimensions: L: 4" x W: 2.5"

Specifications


Complete Kit Weight
Less than 3.00   lbs.

AOA Interface Module size
In Inches: 5.75   x 2.60 x 1.65

System Voltage Requirements
12 - 28 Volts DC

System Max Power Draw
0.250 Amps

System Power Cable
6 ft, three   wires: power, ground and shield

HUD Weight
3.52 oz / 0.22   lb

HUD Frame Dimensions
L: 4 1/8" x   W: 1.250"

HUD Bezel Dimensions
L: 4" x W:   2.5"

Heated Probe Voltage   Requirements
12 or 24 VDC   (must specify when ordering)

Heated Probe Power Draw
86 Watts at   12VDC / 172 Watts at 24VDC

Heated Probe Current Draw
8 Amps at 12VDC   and 8 Amps at 24VDC

Heated Probe Power Wire
Supplied by   others

Audio Output
1 Volt P-P max   at 300 ohm input impedance

Aux (Audio) Cable
6 ft, three   wires: AP audio, AP ground and shield

Audio Options
Four

Mute Switch
Yes, on switch   panel.

LED Brightness Levels
16, from ultra   dim to very bright

Photocell Diode
On display,   allows for custom daytime/nighttime brightness settings

Pressurized Version
Yes

Documents

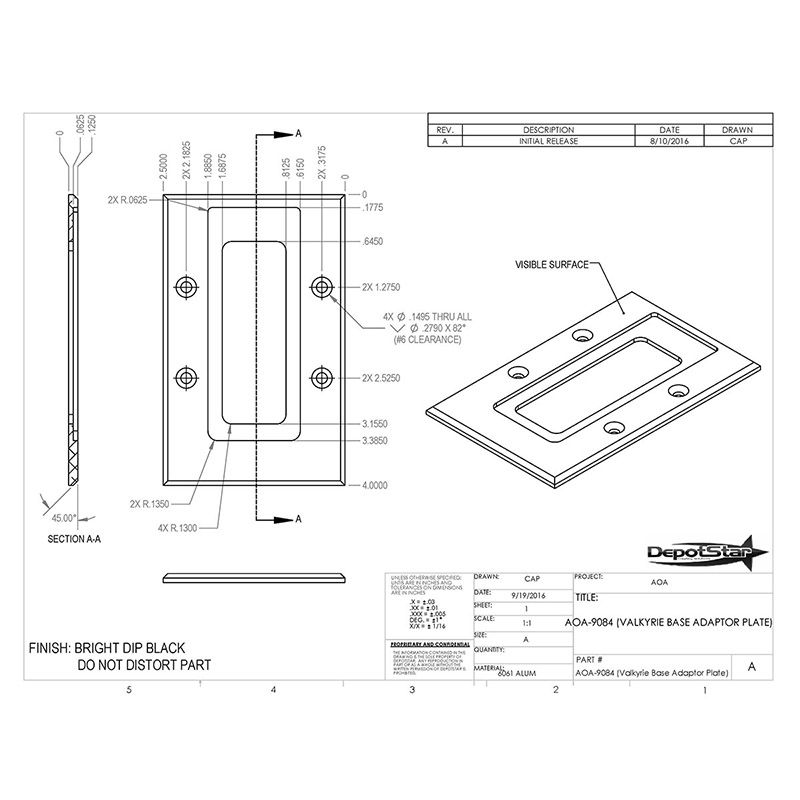

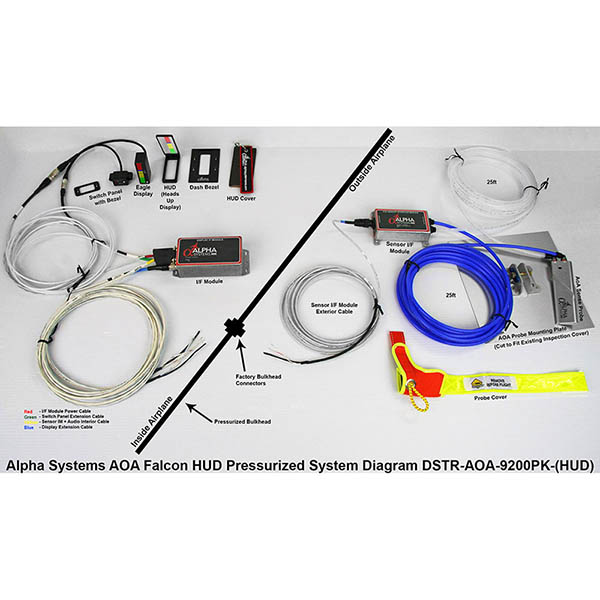

In The Box

  • Mounting Frame
  • Dash Bezel
  • Tinted Lens
  • Custom Display Brackets
  • Hardware
  • HUD Cover with Flag
  • Falcon Display
  • Switch Panel Module
  • Pressurized I/F Module
  • Sensor I/F Module
  • Non Heated Standard Probe
  • 9x9 Probe Mounting Plate
  • HUD (Heads Up Display Adapter)
  • HUD Cover
  • 6ft Power Cable
  • 6ft Display Extension Cable
  • 15ft Sensor I/F + Audio Interior Cable
  • 15ft Sensor I/F Module Exterior Cable
  • 6ft Switch Panel Extension Cable
  • 25 ft Blue Pneumatic Hose
  • 25 ft White Pneumatic Hose
  • Falcon Installation Manual
  • Falcon Operations Manual
  • Protractor
  • Probe Cover
  • Screwdriver
