Alpha Systems Eagle Angle Of Attack Kit

0 Reviews 1 Answered Question
Select Model:
Non PressurizedPressurized
Quantity
Add to Wishlist

Overview

The Eagle AOA kit is a highly visible, full color display and comes complete with interface computer, prewired cable/connector harnesses, tubing, cut to fit AOA probe mounting plate, hardware, and mounting brackets for installation in any aircraft. Our systems are designed for simple installation and pilot flown calibration for real time, instantaneous full-scale AOA range.

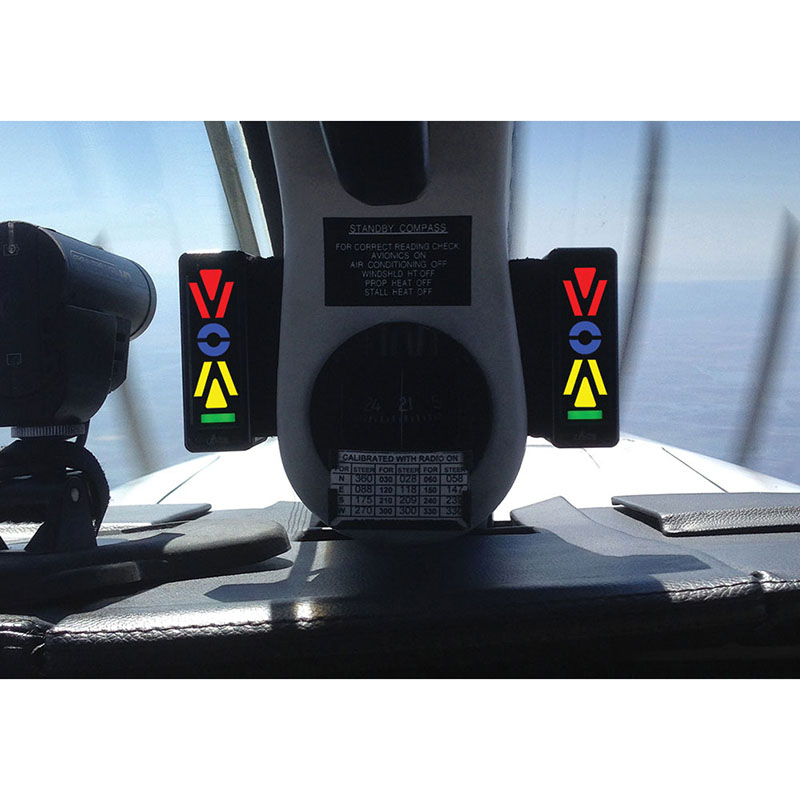

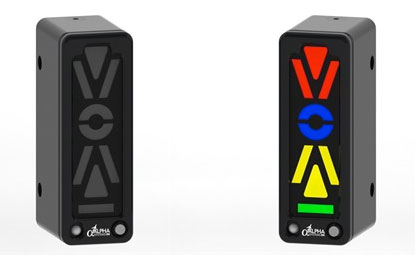

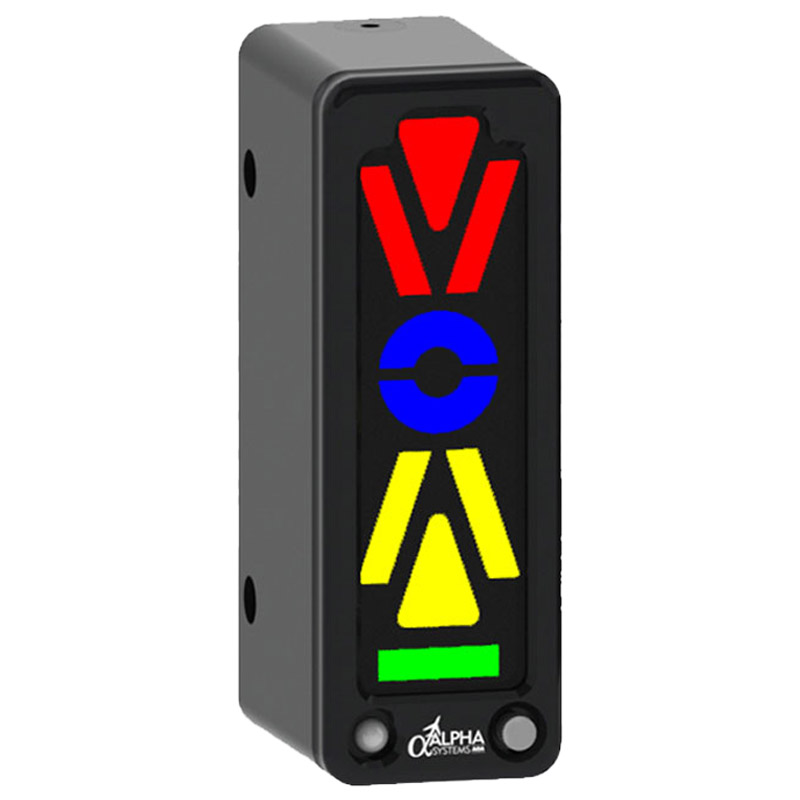

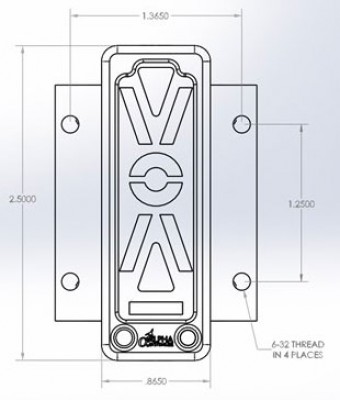

The Eagle display is a chevron style display. With the chevron display, when you come in for a landing you want to fly to the blue donut (on speed for landing). Should you come in with too low of an angle of attack, the yellow chevron will light up and tell you to put your nose up. Should you come in with too high of an angle of attack, the red chevron will light up and tell you nose down.

Features

  • Instantaneous Angle of Attack indication.
  • Additional indication segments.

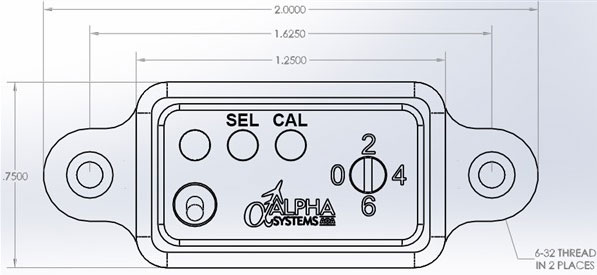

  • Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
  • 16 different LED brightness levels from ultra dim to very bright.
  • Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
  • Audio output, tied to existing audio input on audio panel by others.
  • 4 different audio options to choose from which is programmed by the end user at the remote switch panel.

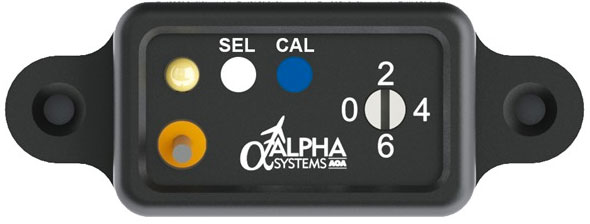

  • Audio mute switch with amber LED indicator located on remote switch panel.
  • 12-28 VDC input draws less than 0.250 Amps at full brightness.

Specifications


Complete   Kit Weight
Less than   3.00 lbs.

Vertical   Fixed Mount Weight
Approximately   .12 LBs 2 oz

Vertical   Swivel Mount Weight
Approximately   .195 LBs 3.1 oz

AOA   Interface Module size
In   Inches: 5.75 x 2.60 x 1.65

System   Voltage Requirements
12 - 28   Volts DC

System   Max Power Draw
0.250   Amps

System   Power Cable
6 ft,   three wires: power, ground and shield

Heated   Probe Voltage Requirements
12 or 24   VDC (must specify when ordering)

Heated   Probe Power Draw
86 Watts   at 12VDC / 172 Watts at 24VDC

Heated   Probe Current Draw
8 Amps at   12VDC and 8 Amps at 24VDC

Heated   Probe Power Wire
Supplied   by others

Audio   Output
1 Volt   P-P max at 300 ohm input impedance

Aux   (Audio) Cable
6 ft,   three wires: AP audio, AP ground and shield

Audio   Options
Four

Mute   Switch
Yes, on   switch panel

LED   Brightness Levels
16, from   ultra dim to very bright

Photocell   Diode
On   display, allows for custom daytime/nighttime brightness

settings

Pressurized   Version
Yes.

Documents

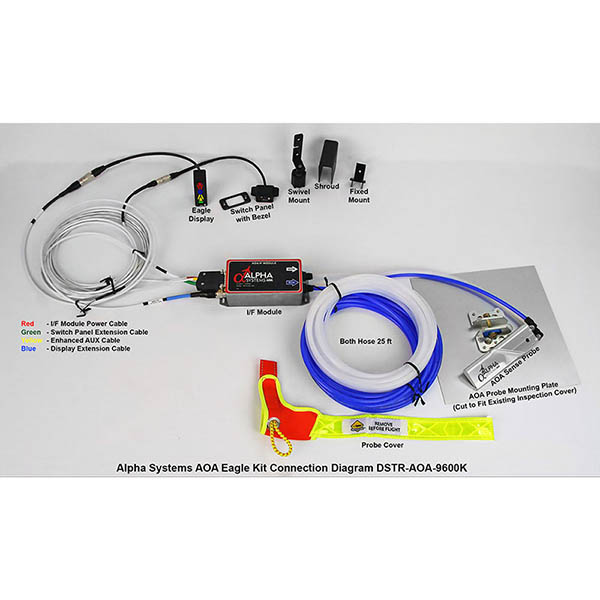

In The Box

  • Eagle Display
  • Switch Panel Module
  • I/F Module
  • Non Heated Standard Probe
  • 9x9 Probe Mounting Plate

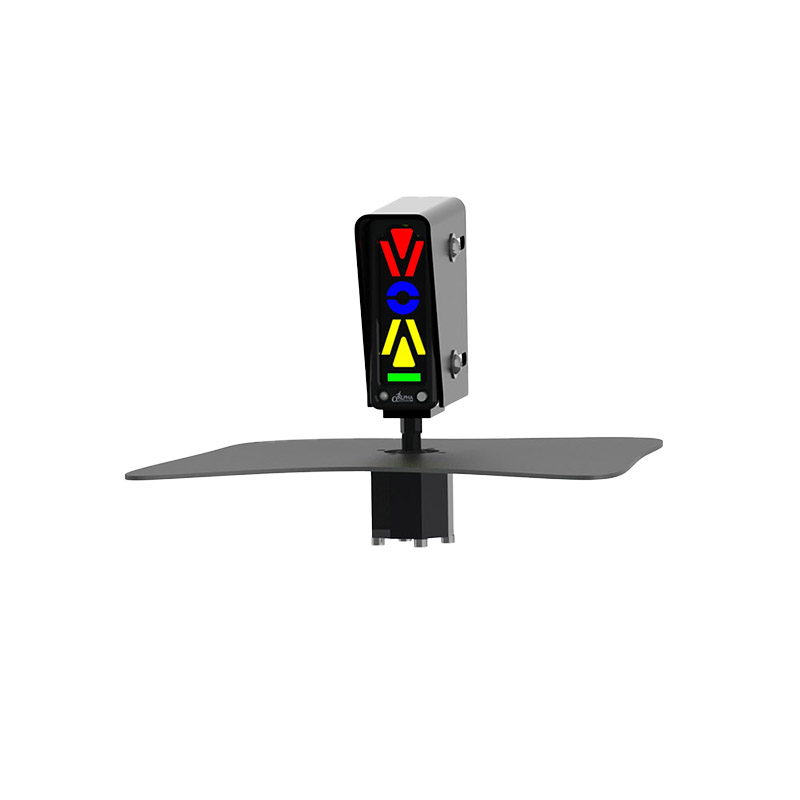

  • Fixed / Swivel Mount
  • 6ft Power Cable
  • 6ft Display Extension Cable
  • 6ft AUX Cable
  • 6ft Switch Panel Extension Cable
  • 25 ft Blue Pneumatic Hose
  • 25 ft White Pneumatic Hose
  • Eagle Installation Manual
  • Eagle Operations Manual
  • Protractor
  • Probe Cover
  • Screwdriver
  • Fixed/Swivel mounting bracket and all mounting hardware
  • Sun Shroud
  • Drill guide
  • Installation Instructions

Videos

https://www.youtube.com/embed/2__DA9zCw1E?si=GlrnCOIUA-vjGwki
https://www.youtube.com/embed/nwsTaxpHoag?si=12fqDRs2ff2Jbn5_
https://www.youtube.com/embed/hRmKkxSpu9E?si=Cd9LR69cPoEW7p7R
https://www.youtube.com/embed/VY1E7H1p7Ds?si=vXk3-5JnWJuB5aDH
https://www.youtube.com/embed/EpLSRY6n52I?si=X7Jj5HMm7Y9eKzqT
https://www.youtube.com/embed/Jwf80e42JGg?si=ieMoo9Sk-e7kxEnh
https://www.youtube.com/embed/Rjzh9kuun_w?si=tbfymhsCIZrCqcsa
https://www.youtube.com/embed/VWoDFWreTgw?si=WddoG7UvZLNrbrAO

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What does this system weigh? and does the heads up display show up on the windscreen? Or is it a flip up mirror?

Per the manufacturer the system weighs less than 3 pounds. Also the unit uses a flip up glass.
