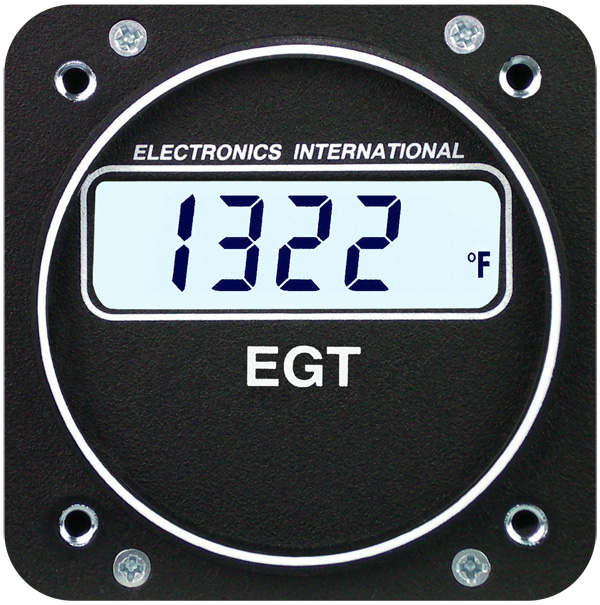

E-1: Single Channel EGT, 2 1/4" Mount, 2.5" Depth, 12 Oz. Kit, STCd, TSOd, PMAd, 1 Degree Resolution, Accurate within 1/2%, Viewable in direct sunlight, Backlit, Operates from 7.5 to 35 volts at .1 amp. Package Includes: Unit, 1 ea. 6 Cable, 1 ea. EGT Probe, All Wires and Connectors. |
The line of Electronics International digital instruments offers precise readings at exceptional prices. All gauges are accurate to 1% and are FAA-approved under STC No.1626NM. Furnished complete with all probes and leads.
Electronics International E-1 EGT One Channel Gauge 2-1/4 TSO
This is a replacement unit for a different brand, The mounting screws diameter are larger than the original mounting screw holes (which are standard). I had to use a rat tail file to enlarge the panel screw holes. The EGT built in screw plate nuts are press fit and dislodge easily and then fall inside the unit. One did fall inside and I had to open the unit to get it back, I refitted that dislodged press fit nut by using a pair of large lock pliers to squeeze the aluminum plate at the screw nut hole (making the hole slightly smaller) and then squeeze refitting the press nut back in place. I have not tested it yet due to the problems above.
Electronics International E-1 EGT One Channel Gauge 2-1/4 TSO
The EI egt was delivered with incorrect harness. Called for replacement but still haven’t received it. My mechanic is working with vendor now. Meanwhile my Cessna is AOG.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The P-110 probe is included. See part number 10-25225 for more information on probe specs. The cable is 6 ft long.
No, this is not a primary, E-1P is a primary gauge replacement.
