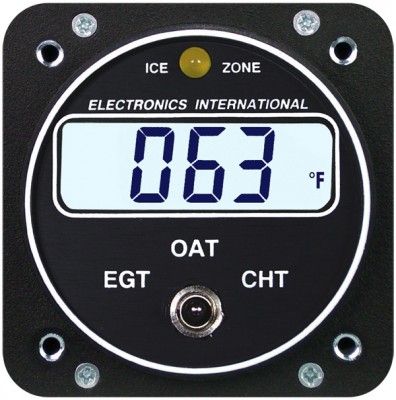

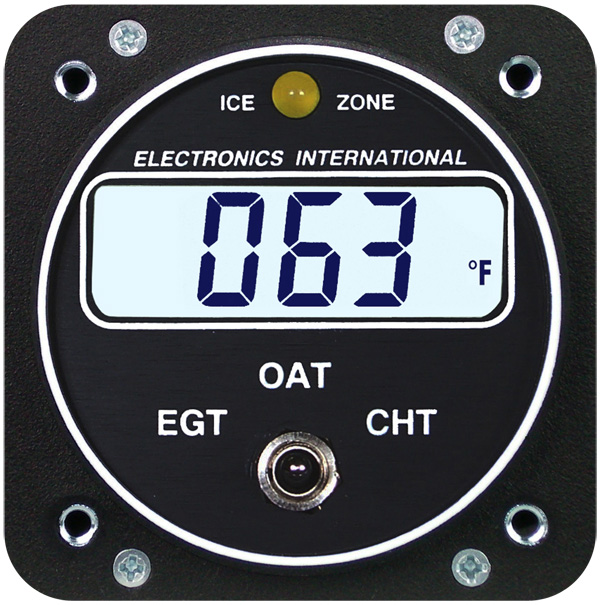

Electronics International Eac-1 One Channel EGT/Oat/CHT
MFR Model# EAC-1
Overview
|
The line of Electronics International digital instruments offers precise readings at exceptional prices. All gauges are accurate to 1% and are FAA-approved under STC No.1626NM. Furnished complete with all probes and leads. EAC-1: Single Channel EGT/OAT/CHT Kit with Ice Zone Warning Light, 2 1/4" Mount, 2.5" Depth, 16 Oz. Kit, STCd, TSOd, PMAd, 1 Degree Resolution, Accurate within 1/2%, Viewable in direct sunlight. Package Includes: Instrument, 3 6 Cables, 1 EGT Probe, 1 OAT Probe, 1 CHT Probe. |
FAA Approval
- STC'd, TSO'd, PMA'd
Reviews
This device looks high quality and is fairly priced. It even comes with installation instructions and helpful setup instructions!
Verified Purchase
Electronics International Eac-1 EGT OAT CHT One Channel 2-1/4 TSO
Does this fit into a Mooney M20J 201. to replace the original EGT OAT indicator? Can you use the built in OAT probe or a change mandatory.
Strongly recommended. I had ordered with the wrong probe in-box. Dumb me. EI’s customer service folks fixed that for me with a quick exchange! Awesome customer experience! Product has performed flawlessly for its first year in the panel!
Unit is for CHT and EGT one channel, and also one channel for OAT or Carb temp, but not both. Comes with an OAT probe and a CARB probe, only one can be used . You decide if you wan outside air temp or carb temp.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, when Carb Temp is selected, the carburetor temperature is continuously monitored and the “Ice Zone” warning light over the display is activated for that channel.
Yes, it is FAA TSO'd, STC'd, and PMA'd as primary.
Yes, comes with one p-110 egt probe, one p-100 bayonet style cht probe, one p-128 oat probe and three six foot cables.
You would use part number 10-01591.
It is in fahrenheit.
