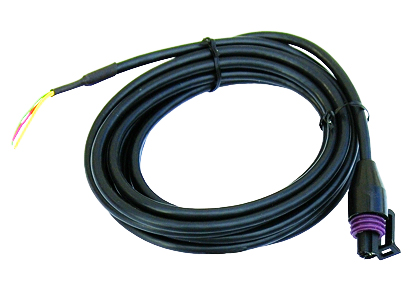

UL Flight Line Fuel Pressure Connector Cable. |
This three wire harness has four wires. It does not match the technical drawing posted here. Check carefully the pin outs from the gauge to the sensor, none of the wire colors make sense if you live in North America. For example, Black is power, and Red is Ground. The fourth wire of this three wire harness is yellow and connects to nothing.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
122.5"
No it will not.
The yellow wire is the shielding from from the harness. If you require a shield ground, the yellow wire is what is used.
