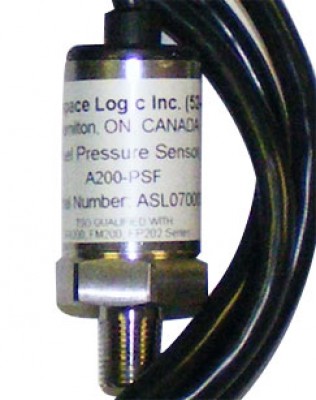

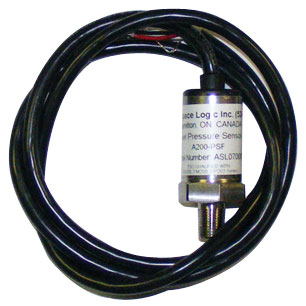

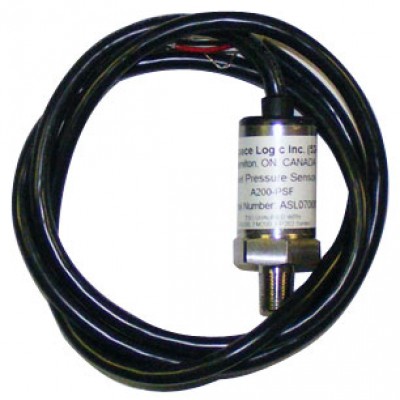

Fuel Pressure Sensor A200-Psf

$481.00/Each
Quantity
Add to Wishlist
Part# 10-04804
MFR Model# A200-PSF

Overview

The A200-PSF Fuel Pressure Sensor is a bulk micro-machined, gage type pressure sensor for use in both harsh and benign media with superior accuracy over an operating temperature of --40°C to 105°C. It has suberb accuracy of +/- 0.5% full scale.
It contains a custom ASIC which provides signal conditioning for calibration and temperature compensation at the point of measurement. Each sensor is traceable to NIST calibration standards.

Supplied with a 36" color coded cable.

Specifications

  • Power requirements are 5V / 10mA
  • Signal output is linear and varies from 0.5V (0 PSI) to 4.5V (100 PSI)
  • Overpressure burst rating is 300 PSI
  • The sensor has a 1/8" NPT threaded port for connection to the fuel pressure line
