Thread | Length | MS No. | Part No. | Price | Buy |
---|---|---|---|---|---|
2-56 | .188 | MS51959-2 | 04-00735 | $0.08 | |
2-56 | .250 | MS51959-3 | 04-00736 | $0.14 | |
2-56 | .312 | MS51959-4 | 04-00737 | $0.08 | |
2-56 | .375 | MS51959-5 | 04-00738 | $0.14 | |
4-40 | .250 | MS51959-13 | 04-00739 | $0.11 | |
4-40 | .312 | MS51959-14 | 04-00740 | $0.13 | |
4-40 | .375 | MS51959-15 | 04-00741 | $0.14 | |
4-40 | .438 | MS51959-16 | 04-00742 | $0.11 | |
4-40 | .500 | MS51959-17 | 04-00743 | $0.13 | |
6-32 | .312 | MS51959-27 | 04-00744 | $0.19 | |
6-32 | .375 | MS51959-28 | 04-00745 | $0.13 | |
6-32 | .438 | MS51959-29 | 04-00746 | $0.19 | |
6-32 | .500 | MS51959-30 | 04-00747 | $0.19 | |
6-32 | .625 | MS51959-31 | 04-00748 | $0.20 | |
8-32 | .375 | MS51959-43 | 04-00749 | $0.25 | |
8-32 | .438 | MS51959-44 | 04-00750 | $0.25 | |
8-32 | .500 | MS51959-45 | 04-00751 | $0.25 | |
8-32 | .625 | MS51959-46 | 04-00752 | $0.22 | |
8-32 | .750 | MS51959-47 | 04-00753 | $0.26 |

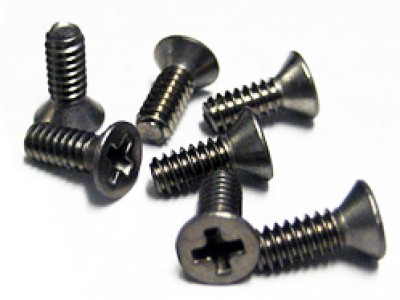

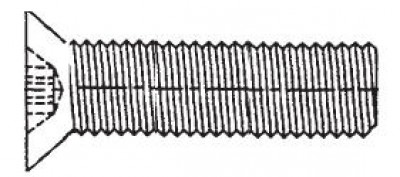

Phillips 82° Flat Head Stainless Steel |
Just another screw.
MS51959-45 Machine Screw
Just another screw.
MS51959-47
MS51959-47
MS51959-28
Very nice
MS51959-47
Ok
MS51959-45 Machine Screw
Fast service on a quality part
MS51959-27
Five star
MS51959-30
perfect as usual
MS51959-43
perfect as usual
MS51959-45 Machine Screw
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The diameter of the thread on the 4-40 is approx 3/32 and the diameter of the 6-32 is approx 1/8.
We do not stock these with a black oxide coating.
MS51959 units are stainless steel, but do have some magnetism.
The only 2-56 nuts we sell are part number MS35649-224, they are not self locking.
