Oil Pressure Sensor A200-Pso

$481.00/Each
Quantity
Add to Wishlist
Part# 10-04805
MFR Model# A200-PSO

Overview

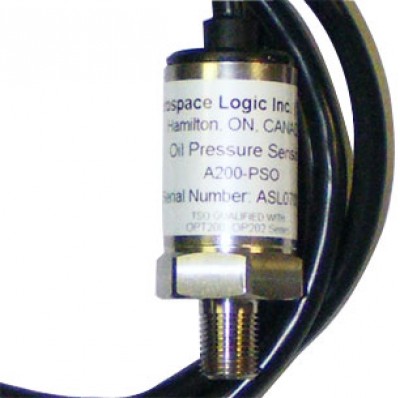

The A200-PSO is a bulk micro-machined, gage type pressure sensor for use in both harsh and benign media with superior accuracy over an operating temperature of -40°C to 105°C. It has superb accuracy of +/- 0.5% full scale.

It contains a custom ASIC which provides signal conditioning for calibration and temperature compensation at the point of measurement. Each sensor is traceable to NIST calibration standards.

The sensor has a 1/8" NPT threaded port for connection to the oil pressure line.

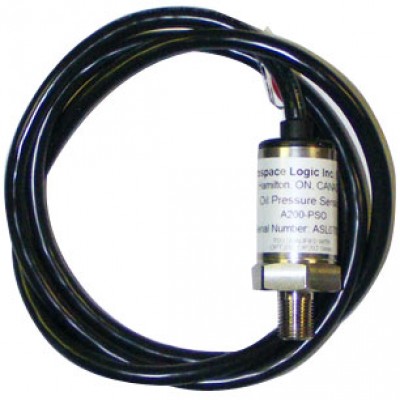

Supplied with a 36" color coded cable.

Specifications

  • Power requirements are 5V / 10mA. Signal output is linear and varies from 0.5V(0 PSI) to 4.5V (200 PSI)
  • Overpressure burst rating is 600 PSI
