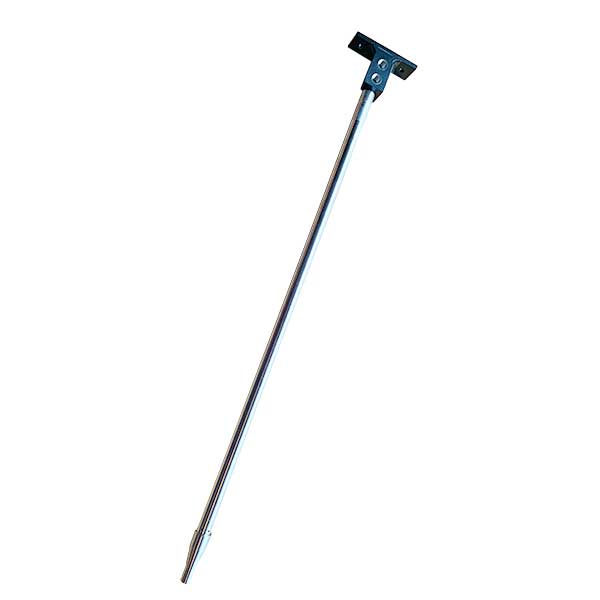

Raven Pitot Static Tube

$534.00/Each
Quantity
Add to Wishlist
Part# 10-00476
MFR Model# TUBE & BRACKET

Overview

Pitot system combines pitot and static functions in one tube. Used for years on many different aircraft. Comes complete with mounting block to install it.

Specifications

  • Thread: 1/8" NPT

Reviews

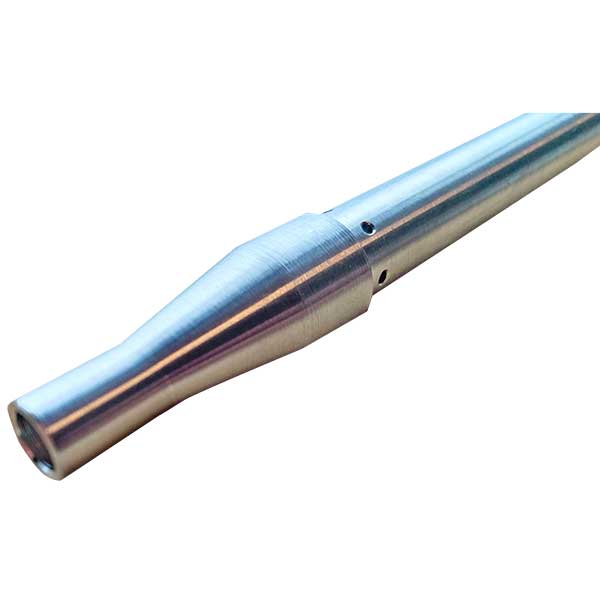

This is the standard four-part pitot static tube, as is used on Pitts aircraft. It has a steel inner tube, aluminum outer tube, mounting block, and nose piece. The parts are well made and work well. I'm giving it four instead of five stars only to make room for one that is finished better (polished, plated, etc) this one is bare aluminum, but can be polished to a mirror finish with little effort.

Custom A
August 22, 2015

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the Raven Pitot Static Tube?

Length from the base to the tip is 21". Diameter is 9/16". Base plate is 2-3/4" x 1". Bolt spacing is 1-3/4"

Q: What is the maximum cruise speed that the pitot-static tube can withstand? in other words, the range of static and pitot pressure it can sense, and in which conditions (Temperature)?

Per the manufacturer: The only testing performed was up to 250 mph.
