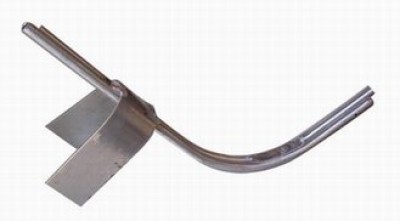

Simple L-shaped design for clamping to strut. 1/4" dia. aluminum tubes. All installation hardware furnished. |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This item has an OD of a 1/4 inch. Instrument tubing that will fit around that will work. ex. 05-00944
The tubing is 6061-t6 and the bracket is 6061-o. The over all length is 9.5" with the bend starting at about 5". The bracket is 2.5" long and 1" wide.
You would order 1/4 Id tubing such as 05-00944. It fits over the top of the tubes on the pitot.
