JPI FS-450R Fuel Scan For Rotax Engines

0 Reviews 2 Answered Questions
$1639.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 10-00266
MFR Model# 450000-R

Overview

FS-450R Fuel Scan for Rotax / (2) 201 Transducers for pressurized carb engines.

  • Continuous display of fuel burned,in upper display in Gallons per
    Hour. Liters and Lbs per hr also available.

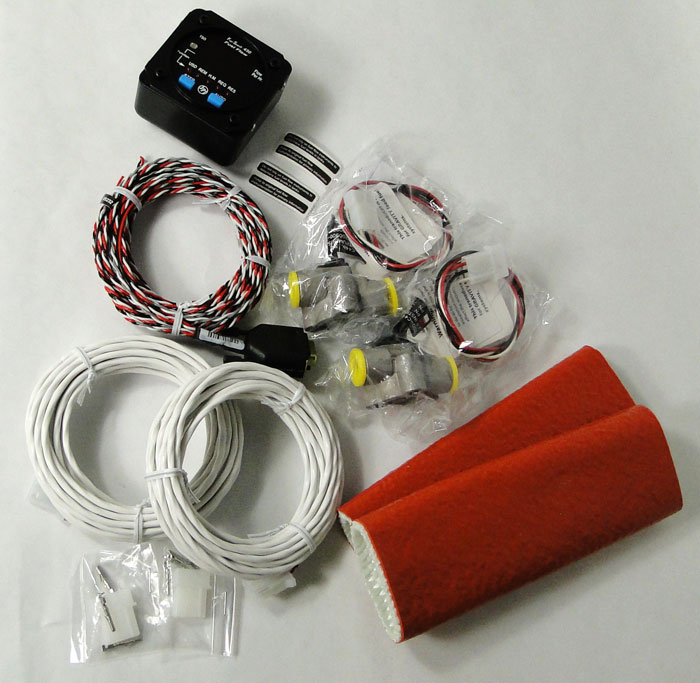

  • An amazingly low price includes Instrument harness and a Flow
    Scan 201 or 231 transducer.
  • Upgrade your old Hoskins, or Shadin System. Will function with
    any K factors; connector is pin to pin compatible.
  • Automatically calculates the K factor.
  • All programming done from the front panel.
  • Size 2.25” diameter (small hole)
  • Light Weight 5 oz with Super Thin 1.5” depth
  • Three year warranty.
  • Serial port sends and receives data from all GPS units, even
    handhelds.
  • Calculates fuel to next waypoint.

Displays these Functions:

  • Total Fuel Used
  • Fuel Remaining
  • Endurance in Hours and Minutes
  • Fuel Required to next Waypoint
  • Fuel Reserve at Next Waypoint
  • Nautical miles per Gallon



Features

  • FS-450 Can Mate to an old Shadin or Hoskins System.
  • Gallons per hour can be changed tap litres or Lbs.
  • QUE lights indicate which function is being displayed in the lower
  • display
  • Auto Button, starts the automatic scan of the functions. Rate can
  • be set from 1-9
  • Continuous display of fuel burn in Gal/Lbs/Litres per hour.
  • Step button can index information forward or backward. All pro
  • graming done easily from the from panel with two buttons and no
  • switches to toggle.

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this approved for Part 23 faa Approved aircraft?

The JPI FS-450R (10-00266) is TSO'd under C44B, there are no part designations.

Q: Does this instrument work with the Rotax 582 2 Stroke Engine?

Yes, this will work with the 2 stroke Rotax.
