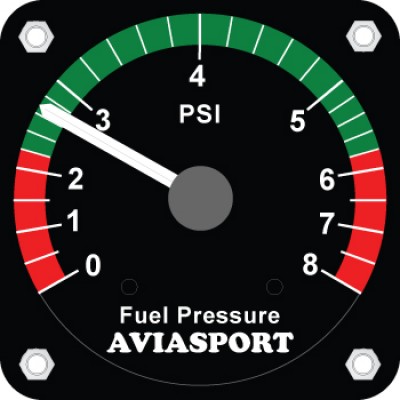

Rotax 912 Im-583 2-1/4 Inch Fuel Pressure 0-8 Psi Kit

$466.00/Each
Quantity
Add to Wishlist
Part# 15-08629
MFR Model# IM-583 KIT

Overview

Unlike mechanical instruments fuel pressure, electronic instruments use a high precision sensor to be installed close to the engine, avoiding cabin carry fuel lines.

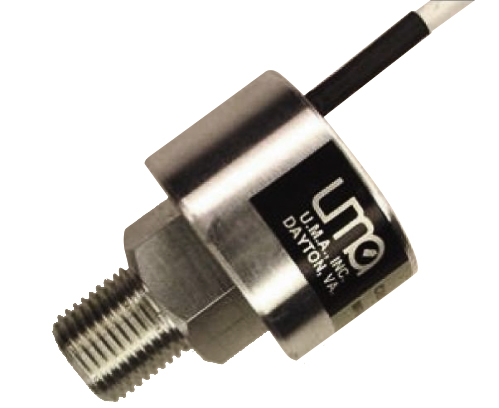

Includes the IM-604 Sensor.

Technical

  • Designed specifically for Rotax 912 engines with silkscreen red green and yellow areas.
  • Diameter 57mm, range 0-0.8 Bar, Wheel indications 0.01 º Bar in central area.
  • Supply voltage 8-35V DC
  • Works with UMA sensors 7 PSI. (Not Included)

In The Box

  • IM-584 Fuel Pressure 2-1/4"
  • IM-604 Sensor
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Reading the technical tab, says Sensor NOT included. However the In The Box tab, indicates the sensor IS included, and at the listed price, I assume it is. Is the sensor included with this kit or not?

This fuel pressure gauge will include the IM-604 Sensor. The technical tab refers to UMA sensors which this unit will work with but are not included. So yes, it does ship with a sensor but it is also compatible with the UMA sensors.

Q: For IM-604 sensor included in the kit, what is the thread size?

PRESSURE SENDER 0 - 7 PSI 1/8" F NPT NON TSO

Q: Confirming this Rotax 912 Im-583 2-1/4 Inch Fuel Pressure 0-8 Psi Kit does come with the sensor?

Yes the sender is included.
