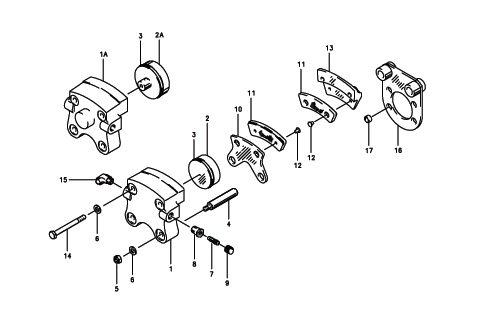

MFR Part No. | Chart No. | QTY Rqd | Description | PN | Price/Ea. | Buy/Ea. |
---|---|---|---|---|---|---|
30-59A / 030-05901 | - | - | COMPLETE CLEVELAND 30-59A ASSEMBLY | 30-59A | $5193.00 | |
091-09600 | - | 1 | Cleveland Brake Cylinder Assembly 091-09600 | 06-01952 | $3146.00 | |
061-07500 | 1 | 1 | Cleveland Brake Cylinder 061-07500 | 06-01953 | $1416.00 | |
092-04000 | - | 1 | Cleveland Piston 092-04000 | 06-01954 | $306.00 | |
062-03900 | 2 | 1 | Cleveland Piston 062-03900 | 06-01955 | $441.00 | |
069-00400 | 4 | 2 | Cleveland Anchor Bolt 069-00400 | 069-00400 | $87.75 | |
095-10200 | 6 | 4 | 095-10200 Washer AN960-416L | 095-10200 | $0.08 | |
079-00300 | 7 | 1 | Cleveland Bleeder Screw 079-00300 | 079-00300 | $32.70 | |
081-00100 | 8 | 1 | Cleveland Bleeder Seat 081-00100 | 081-00100 | $70.75 | |
183-00100 | 9 | 1 | Cleveland Bleeder Cap 183-00100 | 183-00100 | $13.55 | |
073-04600 | - | 1 | Cleveland Pressure Plate 073-04600 | 06-01956 | $436.00 | |
063-03400 | 10 | 1 | Cleveland Pressure Plate 063-03400 | 06-01957 | $523.00 | |
066-11200 | 11 | 2 | Cleveland Brake Lining # 66-112 | 066-11200 | $56.75 | |
074-03600 | - | 1 | Cleveland Back Plate 074-03600 | 06-01958 | $573.00 | |
064-02900 | 13 | 1 | Cleveland Back Plate 064-02900 | 06-01959 | $760.00 | |
103-11700 | 14 | 2 | Cleveland Bolt 103-11700 | 103-11700 | $30.50 | |
075-03700 | 16 | 1 | Cleveland Torque Plate 075-03700 | 075-03700 | $875.00 | |
145-01000 | 17 | 2 | Cleveland Bushing 145-01000 | 145-01000 | $88.75 |
Cleveland Brake Assembly 30-59A |
Cleveland Bleeder Screw 079-00300
Cleveland Bleeder Seat 081-00100
Cleveland Bleeder Screw 079-00300
Cleveland Bleeder Seat 081-00100
No problem
Cleveland Bleeder Cap 183-00100
Cleveland Anchor Bolt 069-00400
Great timely service and great product
Cleveland Anchor Bolt 069-00400
Cleveland Bleeder Screw 079-00300
Simple working part for Cleveland brakes.
Cleveland Bleeder Cap 183-00100
Simple working part for Cleveland brake cylinders. My original screws worn and rounded off from age.
Cleveland Bleeder Screw 079-00300
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
You would use AN6230B-2.
