Cleveland 30-63A Brake Assembly

128 Reviews 4 Answered Questions
From $0.08 to $1885.00
Main Image

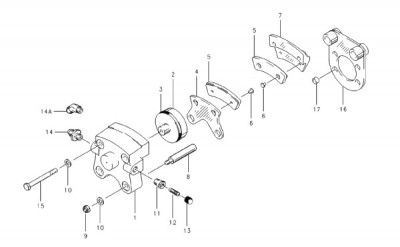

FIG Spruce PN Cleveland
PN		 Descripiton Price Buy
Complete Assembly
30-63A
30-63A
Complete Brake Assembly$1628.00
Quantity
--
091-02200
091-0220Cylinder Assembly$1885.00
Quantity
1
061-01900
061-01900
Cylinder$749.00
Quantity
2
062-01600
062-01600
Piston$259.95
Quantity
--
073-01100
071-0110Press Plate Assembly.$322.00
Quantity
4
063-01200
063-01200
Plate Press$259.95
Quantity
5
66-105
66-155Lining$27.95
Quantity
6105-00200105-00200Rivet - Cleveland 5/16 Length X 5/16 Head x 5/32 Shank$0.39
Quantity
--
074-01000
074-01000
Back Plate Assembly$481.00
Quantity
7
064-01500
064-01500
Plate Back$306.00
Quantity
8
069-00400
069-00400
Bolt Anchor$88.75
Quantity
9
AN365-428A
094-10300Nut$0.30
Quantity
10
AN960-416L
095-10200Washer$0.08
Quantity
11
081-00100
081-00100
Seat Bleeder$71.75
Quantity
12
079-00300
079-00300
Screw Bleeder$33.50
Quantity
13
183-00100
183-00100
Cap Bleeder$13.70
Quantity
14
AN823-4D
104-00500Fitting Tube$20.70
Quantity
15
103-11600
103-11600
Bolt Lock$23.80
Quantity
16
075-01600
075-01600
Torque Plate Assembly$948.00
Quantity
16
075-03700
075-03700
Torque Plate Assembly$875.00
Quantity
17
145-01000
145-01000
Bushing$89.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Model No.30-63A used with wheel 40-97A.
P/N 30-63A

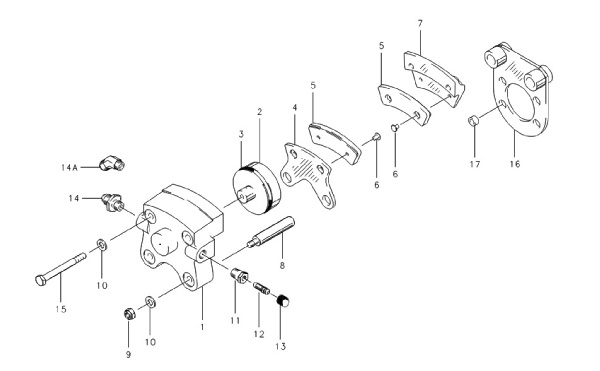

Reference Chart

  Assembly No. & qty. per assembly
FIG Part No. Cleveland No. Description 30-56 30-56A 30-63 30-63A 30-63D
  091-02200 091-02200 Cylinder Assy. -- -- 1 1 1
1 061-01900 061-01900 Cylinder 1 1 1 1 1
2 062-01600 062-01600 Piston 1 1 1 1 1
3 101-05200 101-05200 "O" Ring 1 1 1 1 1
  073-01100 073-01100 Press. Plate Assy. 1 1 1 1 1
4 063-01200 063-01200 Plate-Press. 1 1 1 1 1
5 66-105 66-155 Lining 1 1 1 1 1
6 105-00200 105-00200 Rivet - Cleveland 9/32" Long 2 2 2 2 2
  074-01000 074-01000 Back Plate Assy. 1 1 1 1 1
7 064-01500 064-01500 Plate-Back 1 1 1 1 1
8 069-00400 069-00400 Bolt-Anchor 2 2 2 2 2
9 AN365-428A 094-10300 Nut 2 2 2 2 2
10 AN960-416L 095-10200 Washer 4 4 4 4 4
11 081-00100 081-00100 Seat-Bleeder 1 1 1 1 1
12 079-00300 079-00300 Screw Bleeder 1 1 1 1 1
13 183-00100 183-00100 Cap-Bleeder 1 1 1 1 1
14 AN823-4D 104-00500 Fitting Tube 1 1 -- -- --
15 LP4-17AM 103-11600 Bolt-Lock 2 2 2 2 2
16 075-03700 075-03700 Torque Plate Assy. -- 1 1 1 1
17 145-01000 145-01000 Bushing 2 -- 2 2 2
