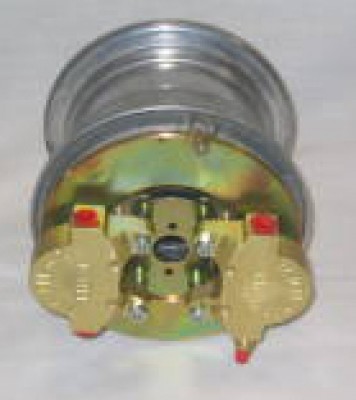

Matco Diecast Internal Caliper Wheels W50Ccd.75

$1488.00/Pair
Part# 06-00474
MFR Model# WHLW50CCD.75

Overview

W50CCD.75
MATCO mfg produces a superior 5 inch wheel and brake assembly for use with aircraft requiring less than 660 lbs per wheel. This model uses 0.75 inch BALL bearings. (Check the product comparison table for other bearing and caliper configurations).

Dimensions

The W50CCD.75 is a 5 inch wheel with 4.38 inch width with an additional 1.75 inch caliper spacing. Bearing spacing is 3 inches and axle spacing is 1 inches. The total weight of this wheel and brake assembly is 5.35 pounds. The bearing axle diameter is 0.75 inches.


Performance The W50CCD.75 is designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS
Maximum Accelerate/Stop Kinetic Energy: 93441 ft-lb
Torque Rating (@450 PSI): 3080 in-lb
Product Comparison Table
