- Photo may represent series and not specific product
- SHARE

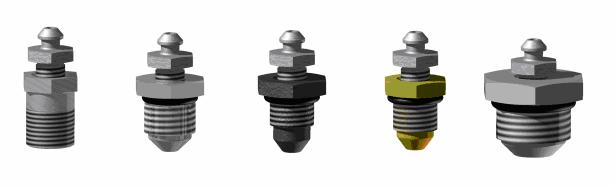

Brake Bleed Valves For Cleveland & Mccauley Wheels
| Image | Model Contents | PN | Price | Buy |
|---|---|---|---|---|
 | MCBB-KT-1: (1) Bleeder Seat 081-00100, (1) Bleeder Needle 079-00300, (1) Needle Cap 183-00100 | 05-06974 | $79.75 | |
 | MCBB-KT-2: (1) Bleeder Seat 081-00200, (1) Bleeder Needle 079-00300, (1) Needle Cap 183-00100, (1) O-Ring MS28775-012 | 05-06975 | $90.75 | |
 | MCBB-KT-3: (1) Bleeder Seat 081-00500, (1) Bleeder Needle 079-00300, (1) Needle Cap 183-00100, (1) O-Ring MS28775-011 | 05-06976 | $134.75 | |
 | MCBB-KT-4: (1) Bleeder Seat 081-00600, (1) Bleeder Needle 079-00300, (1) Needle Cap 183-00100, (1) O-Ring NAS1612-4A | 05-06977 | $106.85 | |
 | MCBB-KT-5: (1) Bleeder Seat 081-30169, (1) Bleeder Needle 079-00300, (1) Needle Cap 183-00100, (1) O-Ring MS28775-011 | 05-06978 | $215.95 |
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|

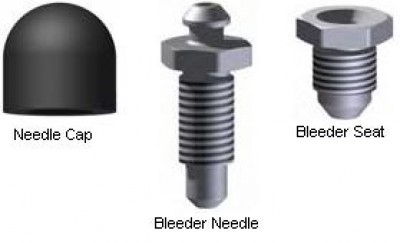

The bleeder valves consist of a bleeder needle, bleeder seat, needle cap, and in some cases an O-ring.
Bleeder seats are precision manufactured from stainless steel for corrosion resistance, and cadmium plated to prevent galvanic corrosion with the magnesium housing. The bleeder needle is made from strong, heat treated 17-4 stainless steel, as compared to the original low-grade steel, preventing corrosion and rounding of the hex. The hex size has also been increased to further resist rounding of the wrench hex. Even the rubber cap is improved, with improved material to prevent cracking, and a shorter design, resulting in a more secure fit. The new bleed valves are available in convenient kits or as individual components, and are available for shipment. Two kits are required per aircraft FAA Approved. |
Documents
Reviews
It was delivered on time the quality was very good I purchase most of the items for my aircraft it is the oldest flying one of it’s type in the world
Verified Purchase
Brake Bleed Valves Mcbb-KT-1
Great product great service
Verified Purchase
Brake Bleed Valves Mcbb-KT-1
Worked perfectly!
Verified Purchase
Brake Bleed Valves Mcbb-KT-2
High quality, perfect fit! Thanks Aircraft Spruce!
Verified Purchase
Brake Bleed Valves Mcbb-KT-2
Verified Purchase
Brake Bleed Valves Mcbb-KT-1
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The differences are the shape of the valve and thread. Please verify the application chart found in the "Documents" tab to determine which model you need for your aircraft.
