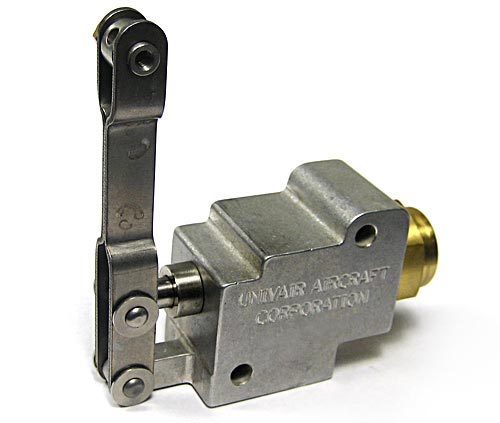

Scott Type Parking Brake Valve

From $871.00 to $879.00
Description Model No. Port A / Port B Part No. Price Buy
SCOTT TYPE PRK BRK VLV U4500-A11/8 ANPT
06-00393
$871.00
Quantity
SCOTT TYPE PRK BRK VLV U4500S-A17/16-20 NF
06-00949
$879.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

A fine quality valve for applications in parking brake systems, helicopter rotor braking systems, pneumatic pressure controls and other hydraulic uses. Molded rubber valve seat designed for use with MIL-H-5606BB petroleum base hydraulic fluid.

Specifications

    U4500S-A1 Eligibility:
  • Raytheon 90, 100, 200, 2000. Supercedes 4500SA1
    U4500-A1 Eligibility:
  • Piper PA-18, PA-18S, PA-18A, PA-18AS, PA-19, L-18C, PA-19S, L-21A, L-21B, PA-20, PA-22, PA-22S. Stinson 108 Series. Supercedes part numbers 4200-A1, 4500-A1, 492-023

Reviews

As always. Aircraft Spruce to the rescue! The valve was exactly correct, and works perfectly. Best of all it was delivered early. Keep up the good work!

Jeffrey H
November 9, 2020

This unit does not hold pressure. No I have to drain out 5606 and remove part to exchange for another. Hopefully that one will hold pressure.

Andy R
March 26, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which port goes to the hydraulic reservoir and which port goes to the brake, or does it matter?

Port A, horizontal port is the supply, and port B, vertical port is the out flow.
