Shock Cord Ring - 1080HD

$70.75/Each
Part# 06-00823
MFR Model# 1080HD

Overview

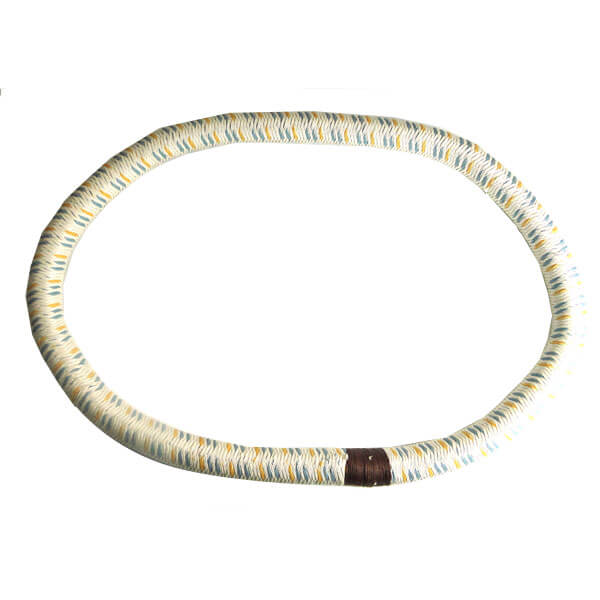

An endless elastic ring composed of multiple strands of natural rubber, wound into a circular skein. Braided cover is high grade yarn. Manufactured to meet specification MIL-C-5651B, Type II. Shock cord is used in landing gear to reduce shock transmitted to fuselage while landing and taxiing and on other shock mounting applications. Color coded to insure fresh stock.

CW (Cold Weather)shock rings available on Special Order basis. Prices are approx. twice that of standard shock rings. Add "-CW" to standard part number when ordering.

The MIL Fresh Shock Ring number is 1080HD. The ring size is 5/8" x 8". Test is 900 LBS. 4 units required.

Note: Size listed is cord diameter x ID

Application Chart

Plane Type Part # Size Test Lbs No. Req'd
Piper PA-12
1080HD 3/4" x 8" 950 4 or 6
Piper PA-16
1080HD 5/8" x 8" 900 4
Piper 3013
1080HD 5/8" x 8" 900 4
Piper Planes ser. no.
(18-3014 & up)
1080HD 5/8" x 8" 900 4
Piper 2186
1080HD 5/8" x 8" 900 4
Piper PA-20
(1952 model & up)
1080HD 5/8" x 8" 900 4
Piper PA-22 1080HD 5/8" x 8" 900 4
Piper PA-25 1080HD 5/8" x 8" 900 4
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

The bungees showed up very fast and as expected, on the plane and happy landings.

Claude F Verified Purchase

Shock Cord Ring 1080Hd

May 17, 2024

Parry S Verified Purchase

Shock Cord Ring 1080Hd

October 31, 2023

Richard C Verified Purchase

Shock Cord Ring 1080Hd

July 29, 2023

It’s a bungee that does bungee things. Does fit the Zenith 601xl.

Robert G Verified Purchase

Shock Cord Ring 1080Hd

June 7, 2023

Ok

Uzan E Verified Purchase

Shock Cord Ring 1080Hd

February 21, 2023

Products as expected and arrived in a timely manner

Dennis S Verified Purchase

Shock Cord Ring 1080Hd

September 20, 2022

Product OK, no problems. Installation done.

Joe V Verified Purchase

Shock Cord Ring 1080Hd

June 15, 2022

Perfect replacement shock cord for my 601 XLN

Angel R Verified Purchase

Shock Cord Ring 1080Hd

May 25, 2022

Ronald K Verified Purchase

Shock Cord Ring 1080Hd

May 4, 2022

great product

Antonio T Verified Purchase

Shock Cord Ring 1080Hd

March 14, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: When you say each, as in each individual cord or each set is priced?

These are priced and sold per bungee. We have updated the website photograph to show the product as delivered per quantity 1.
