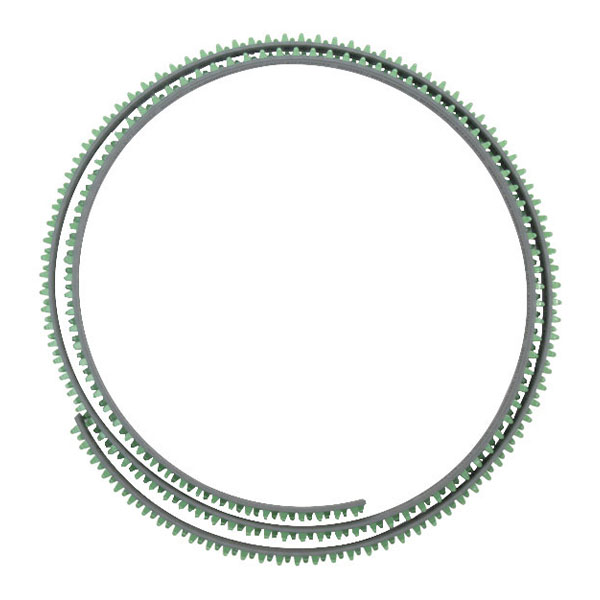

- Photo may represent series and not specific product
- SHARE
Grommet Edging M22529/2-2R
MFR Model# M22529/2-2R-25
| MFG Number | Sheet Thickness | Part No. | Buy 25 Ft. Roll |
|---|---|---|---|
| M22529/2-2R | .036-.063 | 05-00675 | -- |
Overview
|
Mil Spec qualified Spring-Fast is the fastest, safest, most reliable way to protect wires, cables, and tubing from abrasion. It locks on with finger pressure in seconds, eliminating solvents, adhesives, ancillary materials and volatile organic compound (VOCs). Installs continuously and is very flexible for use on straight edges and sharp inside and outside corners. Spring-Fast® Composite Grommet Edging covers sharp edges of panels that come in contact with wite and cables and mechanically lock on indefinitely with finger pressure in only seconds per foot. They provide a significant time reduction in assemblies. A long-term reliability solution that replaces nylon caterpillar plastic grommets and associated solvents, adhesives, and ancillary materials to protect critical equipment from failure due to wire chaffing. Spring-Fast® Grommet Edging is approved by the FAA and U.S. Department of Defense per NASM 22529/a and NASM 22529/2 for all aircraft applications. Meets FAR 25.853 for flammability and MIL 1344 for shock and vibration. Spring-Fast® is available for 8 different sheet thickness ranges from 0.025 to 0.260 and can be purchased in either 10 piece packs of 12.75" long pieces, or by the foot. Use Spring-Fast® BAP and SL series for flanged lightning hole and three-axis contours. The BAP Series Flexi-Grommet is perfect for roll formed edges and small lightening holes. Where wires are routed in the same plain as the sheet metal, the Spring-Fast® SL Series provides a trim characteristic for all edges with or without cabling nearby. Spring-Fast® is used in a wide variety of aviation and aerospace applications: • Lightening Holes • Wing Sections • Seating • Intercostals • Fuselage • Avionics • Bulkheads • Air Traffic Control • Racks • Tail Sections • Tactical Satellite Emulators • Ferrules • Navigation Systems • Electrical Power Centers • Ground Control • EAU (Electrical Avionic Units) • PSU (Personal Safety Units) • APU (Auxiliary Power Units) • IFE (In-Flight Entertainment) |
Specifications
- Temperature Range -40ºF to 185ºF (-40ºC to 85ºC)
- Voltage Breakdown 60 Hz 1500 V
- Flammability FAR 25.601, FAR 25.853
- MIL-STD-202F
- Random Shock and Vibration MIL-STD-1344
- Salt Spray Testing MIL-STD-202F
Documents
Videos
Reviews
Works as advertised, easy to use.
Verified Purchase
Grommet Edging M22529/2-2R
Innovative design. Grips well and gives me the protection I need.
Verified Purchase
Grommet Edging M22529/2-2R
This edging has a metal base that clips onto the skin edge with a polymer lining outside. Was not quite what I expected as I normally use the full polymer version to avoid metal to metal contact. Looks high quality though.
Verified Purchase
Grommet Edging M22529/2-2R
Very cool concept. Doesnt work if holes are flanged, straight cut only.
Verified Purchase
Grommet Edging M22529/2-2R
Verified Purchase
Grommet Edging M22529/2-2R
Great stuff, way better than the plastic alligator grommet
Verified Purchase
Grommet Edging M22529/2-2R
Worked great!
I installed this on my wood chippers sheet metal engine housing. To line the through hole to prevent chaffing on the air filter housing tube. Took less than 10 min without disassembly. It rides the edge with minimal clearance and stays in place nicely.
Great product! Perfect for lightening holes to prevent chaffing of hoses and wiring that passes through.
Excellent product. Works as advertised. Will purchase additional material in appropriate sizes.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is the thickness of the material you are putting the grommet edging on.
"R" means the material is cut from a reel/roll.
