Fuel Drain Valve Kit Cessna

$267.95/Each
Part# 05-03566
MFR Model# FFCC-B187
Aircraft MakeMfg Part No.DescriptionPart Number
CessnaFFCC-B187Fuel Drain Valve Kit Cessna05-03566

Overview

These high quality fuel drain valve kits are FAA-PMA approved for a wide range of Cessna and Beechcraft aircraft.

These drain valves prevent drain nipple slippage, require no O-rings, feature corrosion free construction, and use the industry standard 1/8" pipe thread valve.

Kit includes 2 of each: snap ring, valve body, washer, spring, stem w/o-ring, housing, snap ring.

Aircraft Eligibility

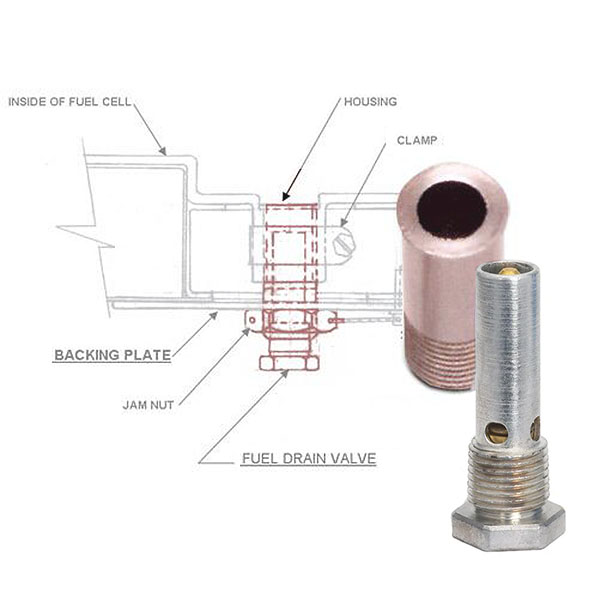

Click Image To Enlarge

Specifications

  • Material: Valve 360 Brass, Housing Stainless
  • Finish: Cadmium Plate
  • Temperature: -100° to +350°F (-73° to +177C)
  • O-Rings: M25988-005
  • Pressure: 60 PSI max.

Features

  • The valve can be rebuilt
  • Fuel resistant o-ring - Fluorosilicone
  • Push to test against the wing surface

Reviews

The drain kit is good, and arrived quickly. We only needed 1 drain to replace a bad one, but these are only sold in pairs and in a kit. So we had to buy an extra drain and a kit that is not going to be used. Wasteful.

Skydive Z Verified Purchase

Fuel Drain Valve Kit Cessna

February 22, 2022

Great product. Installation was surprisingly easy. No more leaky drain valve!

Flying K Verified Purchase

Fuel Drain Valve Kit Cessna

October 31, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this one or two valves?

Kit includes 2 of each: snap ring, valve body, washer, spring, stem w/o-ring, housing, snap ring

Q: How is the drain valve secured from backing out of the housing? Is it drilled for lockwire?

The nut is drilled and is safety wired.
