OEM PN | Volts | Part Number |
---|---|---|
477060E | 12 | 05-10835 |
Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use. Fuel Compatibility: All models of the Facet High Performance Gold-Flo Solid State Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives. Reliability: The new Gold-Flo Solid State Fuel Pump is an enhanced version of the Interrupter model. It has Solid State circuitry and will meet or exceed all performance specifications and is totally interchangeable. (These pumps have demonstrated an endurance life almost double that of the nearest competitor, according to test data). Easy to Install-Easy to Service: Two bolt mounting makes installations easy. Nothing to adjust. For best results, mount the pump close to the fuel tank and below the fuel level. The pump is self-priming to 24 inches vertical fuel lift. Vertical mounting is preferred to assure maintenance of rated pressures. The only service normally required is a simple cleaning of the filter and fuel inlet cavity. Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes. |
PN | OEM PN | Volts | PSI Max-Min | GPH | Fitting Size | Lift Min. Dry | Check Valve | Positive Shut Off Valve |
---|---|---|---|---|---|---|---|---|
05-10842 | 40007E | 12 | 5.5-4.0 | 36 | 1/4"-18 Int. | 24" | N | N |
480545 | 40131E | 12 | 5.5-4.0 | 34 | 1/8"-27 Int. | 24" | N | Y |
476088 | 476088 | 24 | 5.0-4.0 | 32 | 1/8"-27 Int. | 24" | N | N |
480543 | 480543 | 12 | 8.0-6.0 | 45 | 1/4"-18 Ext. | 24" | N | N |
05-10832 | 476087E | 12 | 5.5-4.0 | 36 | 1/8"-27 Int. | 24" | N | N |
05-10833 | 476459E | 12 | 8.0-6.5 | 32 | 1/8"-27 Int. | 24" | N | N |
05-10835 | 477060E | 12 | 4.0-2.75 | 34 | 1/8"-27 Int. | 24" | N | N |
478360 | 478360E | 12 | 5.5-4.0 | 36 | 1/8"-27 Int. | 24" | N | N |
05-00802 | 480534E | 12 | 8.0-6.0 | 45 | 1/4"-18 Int. | 24" | N | N |
05-01003 | 480564E | 24 | 5.0-4.0 | 32 | 1/4"-18 Int. | 24" | N | Y |

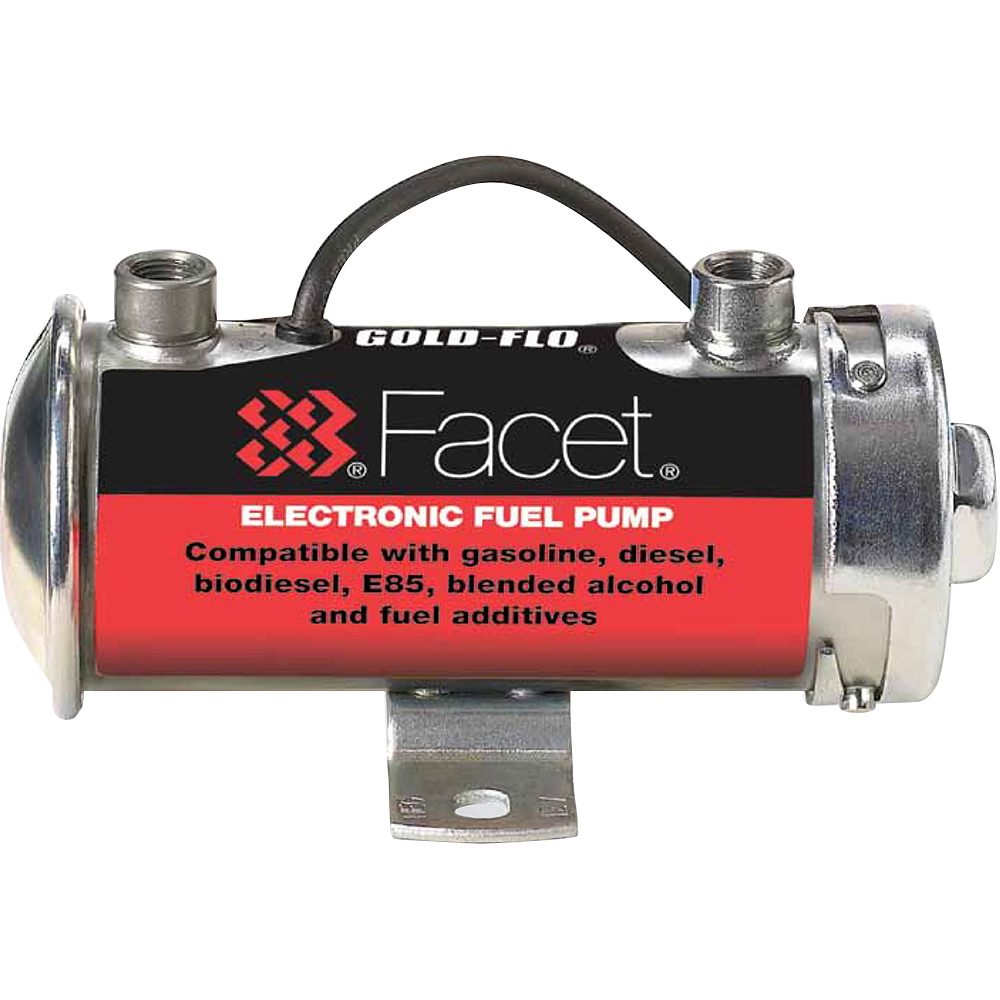

477060 Facet Gold-Flo Fuel Pump
Can you send me the bill of the 13/07/2020 for Baumert of 425,07$
Excellent original delivery and when damage discovered, replacement sent immediately.
Awesome service from Aircraftspruce ! I had a technical question related to a Facet pump and the answer to my request was next day in my email inbox. Stunning team at Aircraftspruce with orders and questions. A happy customer
Selecting the right pump can be confusing but quick shipping and works great.
Arrived timely and exactly as described. Great replacement part for my boat at a significant savings over a marine store.
Recieved exactly what I ordered - no surprises. Prompt delivery and reasonable ptice
Always reliable, smooth - quiet operation. Facet pumps have never let me down.
Pump works great. Thank you for the rapid delivery.
Inf
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The E stands for electronic. Both pumps will fit the same application.
We can't list the size because it depends on the aircraft voltage and how long the wire is going to be to the power source/battery. The general recommendation is to ask the installer to refer to the FAA 43.13, Acceptable, Methods, and Practices chart 11-2 to select the appropriate wire.
No, these pumps are intended for experimental aircraft use only.
Per the supplier: Yes, that is it exactly. Please bear in mind that only some models of the Facet Gold-Flo pumps have this positive shut off valve.
Per the supplier: This pump does not have a check valve or a positive shut-off so the fuel would continuously flow through when off.
Approx 1.62 lb out of the box.
No, these do not hold any FAA Approval.
We are not permitted to sell the 477003E pump. Please contact Flint Aero at 619-448-1551 to purchase this pump.
Yes, 476088 is 476088E.
They are the same, the manufacturer has to keep both of the part numbers for OE applications.
