Cleveland Brake Assembly 30-55

$2048.00/Each
Part# 06-03055
MFR Model# 030-05500
Part NumberDescriptionImage No.
30-55Entire Assembly

Overview

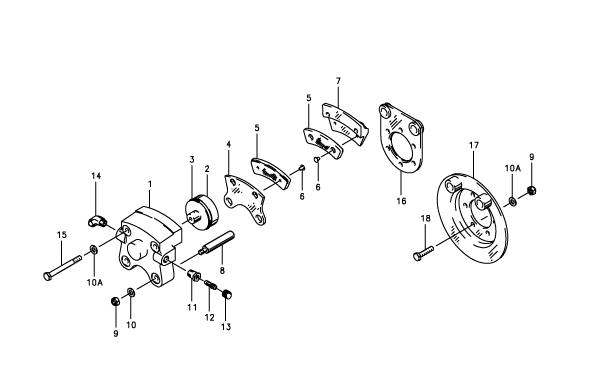

Detailed image diagram and parts list for 30-55 brake assembly.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Arrived early in excellent condition and fit perfectly and operated as advertised. Thanks again for another job well done.

Ron P
October 23, 2020

Perfect fit. Transferred the fittings and solved my bleeding issue.

Peter
October 19, 2020

With most pilots focused on things like speed, be it indicated, true, ground or even calibrated, often times the other side of the spectrum, stopping, is relegated to an afterthought. Ever since rolling off the runway during my ATP checkride, for which some mysterious reason earned me a pink slip, in spite of the fact that technically, other than exiting the plane in a field (saving hundreds of dollars in those pesky FBO parking fees) the landing was a huge success, Ive made it a personal commitment to firmly focus on the vital role effective dissapation of air speed plays in lining up the wheels with the white painted line at the tie down. These brake linings, while demure in size, have proven time and time again to be an integral piece of the aircraft ground controllability puzzle, and while I can vouch for more or less satisfactory results without having them installed, when its checkride day, and that FAA examiner has once again popped either a hip or knee cramming his ancient body into your equally as ancient aircraft, stack the deck in your favor by slapping a fresh pair of these fine stopping implements on either side of the round shiny metal ring connected to your wheel. Based on my own personal experience, Id even venture to say that doing so on both wheels might lead to even better results, but what do I know?

Sir S
March 24, 2019

Fit my M20K mooney perfectly

Scott
October 7, 2018

Received in a timely manner, installed and works good - last a long time. Very happy with Spruce.

Alex
July 31, 2018

The Cleveland 66-105 brake pads are a bit thicker than other replacement pads. They last a long time and are very effective.

Carl F
March 19, 2018

Just opened the box on the new -55 assembly and it is a nice piece of equipment. With the new axle adapter plate and anchor bolts that came with the unit, my brakes on the Cherokee are back to as good as they get.

Ken H
September 24, 2017

Using genuine Cleveland replacement parts means no wasting time, trying to get things to fit, and linings that really have holding power.

Andy G
July 20, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do the 66-105 linings come with rivets?

Yes, part number 66-105 will come with rivets.

Q: Please identify the rivets, item number 6 and in the figure. Also, please identify the specifications and alternatives to these rivets. Also, the alternatives to the pads, item no.5.

The pads are 66-105. The alternatives to the Cleveland pads are Rapco and APS. The Rapco pads are RA66-105 and the APS pads are APS66-105 (Part# 07-20204). The rivets are Cleveland # 105-00200 and can be purchased under part # 05-11599, 06-00351 or 07-20100 (100 pack).
