Mk-01 Instrument Nut Ring
MFR Model# MK-01
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Model | Description | Part Number |
|---|---|---|
| MK-01 | 3-1/8” Standard | 10-00335 |
Overview

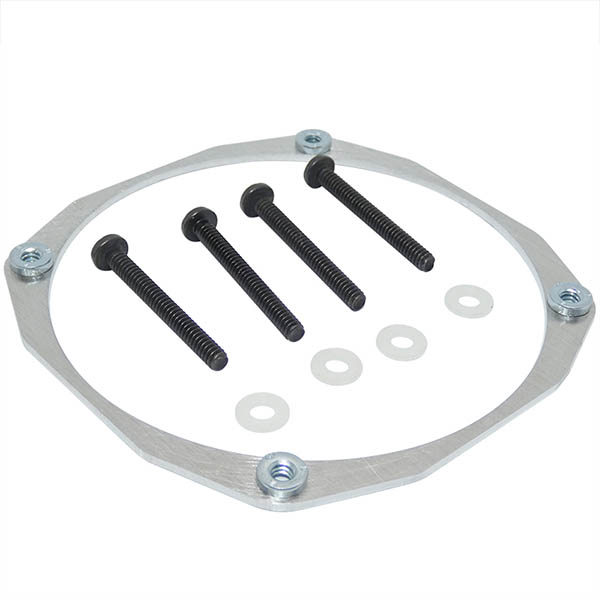

Precision machined nut ring instrument mounting kit. Designed to slide on from the back side of the instrument using the alignment guide pin inserted trough a screw hole. Pulling on the alignment pin from the front side of the panel allows you to hold the instrument in correct alignment in the panel. Specially designed self-locking pan head black brass mounting screws and nylon washers are the easily installed from the front. Countersunk self-locking black brass scrws are also available. Nut rings can be installed without removing hoses, tubing, or electrical connections. Designed to raplace "grasshopper nuts"!
|
Reviews
Worked just fine but make sure to get mounting pin for simple installation
Verified Purchase
Mk-01 Instrument Nut Ring
Worked perfectly make sure you buy the alignment pin too
Verified Purchase
Mk-01 Instrument Nut Ring
Perfect for my purpose.
Super easy, perfect fit. A great solution.
Awesome product. There is no way I could have installed my new airspeed indicator in my Ercoupe’s panel without this, there is hardly any room and this plate worked perfectly. Before installing I put a piece of double sided tape in between the insturment and the mount to help hold it in place. Would definitely recommend
Absolutely perfect for my RV9. Purchased with my 2.25 gauges. Installation is a snap. Caution: Some of my gauges were slightly larger than ring ID. No problem - just sanded out a little.
We used these kits on a Decathlon restoration while upgrading the panel. Not only were they extremely easy to use, you end up only spending about $1-$2 more than if you buy long screws and standard instrument nuts. A great value for the giant leap in convenience!
Bought a bunch of these a few years ago thinking they were superior to the older clip in instrument nuts. Naw To make they work right, I had to discard the double stick tape they provide as you destroy those just trying to get them off the sheet, and further remove the backing. Then the nuts themselves are press fit in the frame and if you tighten too much, the nut dislodges and will then spin when you go to remove it. Use duct tape to retain on instrument and a touch of JB Weld to secure the nut is what I ended up doing with each one.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes. They come with 4 6-32 1 1/4" long brass screws in the package.
