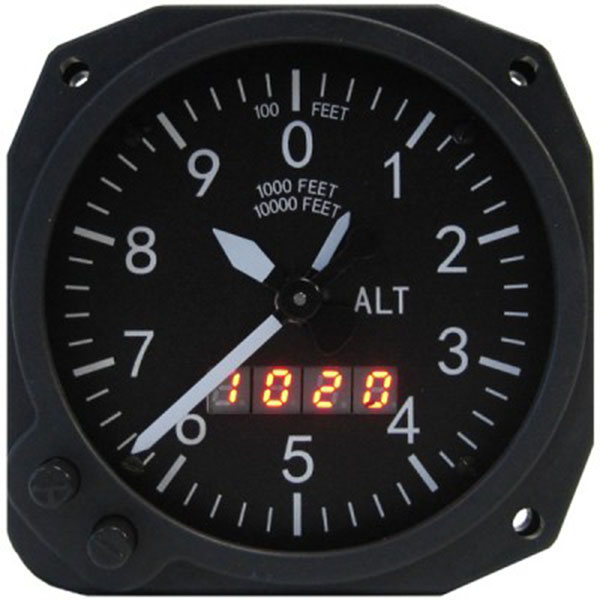

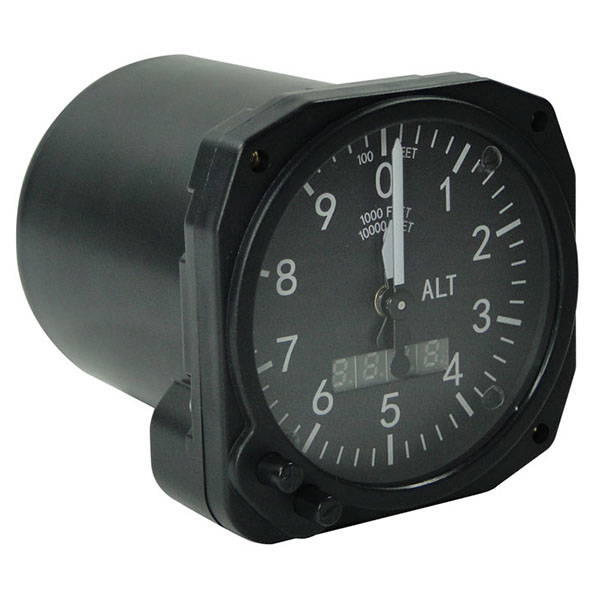

Swift 3-1/8 Altimeter 0-10K Medium 2 Pointer Baro Mmhg Inhg Mb Circle

0 Reviews 3 Answered Questions
$652.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 10-06289
MFR Model# ALT3-10M3
Model NumberDescriptionRemarksPart Number
ALT3-10M310,000 M 3 PointerBarometric unit switchable: mmHg/inHg/mb, 100m/circle10-06289

Overview

Patent product, Integrates the highly reliable MEMS sensor Precise, Durable, Accurate (reading), free from frequent regular calibration.

  • Large measurement range: up to 13,000 m (42,000 ft);
  • Barometric unit can be switched between mmHg/inHg/mb;
  • Precise indication: long pointer rotation a circle represents 100 meters in a 3 pointers 10000m model;
  • Easy adjustment: adjust barometric pressure via button instead of knob, simple and straightforward;
  • Digital-displayed barometric pressure with big and clear digits and adjustable lightness;
  • Error can be corrected: no need to be returned to the manufacturer or checked with a specific instrument. After years, when the pressure-sensitive component in the indicator appears small drift, the indication error can be corrected;
  • Super simplified variety and specification, thanks to features including high precision, large range via the sensor and switchable barometric unit.

Specifications

  • Size: 3 1/8"
  • Install Depth: 96mm
  • Power Supply: 9~30VDC
  • Weight: 400 g

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Swift altimeter and barometer FAA TSO approved for certified aircraft?

No, this altimeter is not FAA Approved for certified aircraft. Experimental aircraft use only.

Q: What happens if power is lost? Is the altimeter still functional?

The altimeter uses the static line for function. If power is lost, you will lose power on the led display portion that displays the barometric number.

Q: Is the Swift altimeter dial internally lit?

No, this is not lit.
