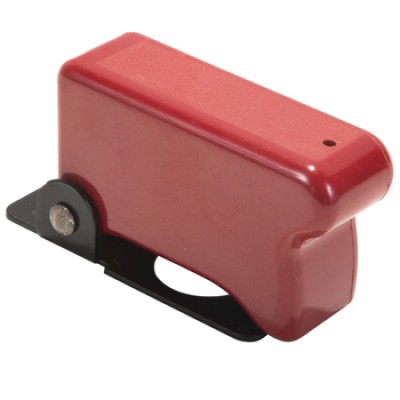

Phenolic Red Switch Guard 3 Pos

$39.50/Each
Part# 11-06223
MFR Model# 8496K2
DescriptionPos.ColorPart No.
Phenolic3Red11-06223

Overview

Spring Loaded Switch Guards. Klixon switch guards can be used with 2 or 3 position switches. Covers are molded out of Thermoset molding materials. Guard covers are spring loaded to close.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Looks good, however I haven’t installed it yet.

Joseph P Verified Purchase

Phenolic Red Switch Guard 3 Pos

September 29, 2023

Dom B Verified Purchase

Phenolic Red Switch Guard 3 Pos

June 9, 2021

These are great for covering three-position rectifier switches in guitar amps, but closing the cover still moves the bat to the middle position. I use a dremel to rout enough clearance so the switch stays where I put it.

Mar
March 22, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do the Klixon Switch guards allow the switch to be either on or off when the cover is closed or just off?

When closed, the switch can only be in the off position.

Q: How large is the mounting hole?

The diameter of the hole is .459 inches.

Q: Will the Klixon switch guard remain open if selected?

No, they are spring loaded to remain closed.

Q: Is the mounting hole keyed?

This is not keyed per the vendor.

Q: Will this switch guard fit the pitot/static toggle, your part # Part# 11-12168?

Yes, this should fit that toggle.

Q: Does the green guard leave the switch in the on position?

Per Manufacturer: "8499K1, MS25452-1 Safran (Labinal Power Systems / Eaton Aerospace) toggle switch guard, Qualified to MIL-G-7703 & MS25452-1,Flush Mount for 2 Position Full Throw Switches, Permits locking toggle in extreme up position, Metal Green Lever."
