Aveo Middle Module Avrr-Mp
MFR Model# AVRR-MP
| Steps | Description | Part No. |
|---|---|---|
| - | Middle Module | 11-06649 |
Overview
|
The exclusive RockRack™ system from Aveo permits the pilot to build up his cockpit rockers to meet his particular needs. The pilot can make just one simple cutout for whatever number of rockers he wants, starting with a single rocker up to a complete lineup, due to the unique locking "dovetail" stacking system of the switch housings as shown in this diagram:  |
Features
- Aviation Icons backlit with LEDs
- Only one cutout needed for any stack size
- Integrated resistors
- Quick-Connect Connectors up to 10 terminals
- Ultrasonic welding seals
- Removable actuator
- 150,000 cycle mechanical life
- 12 volt
Specifications
- 12 Volts
- Max amps: 20
- 150,000 cycles minimum mechanical life
- Water & petroleum resistant according to EN61058-1
- Tear resistant according to NF ISO 2409 Class 0
- UV resistant according to ISO 4892-2
- Gold plated contacts
- LED consumption : 20mA@nominal voltage at 25º C
- Meets or Exceeds All FAA & EASA Requirements
Documents
- Connection Diagram (PDF)

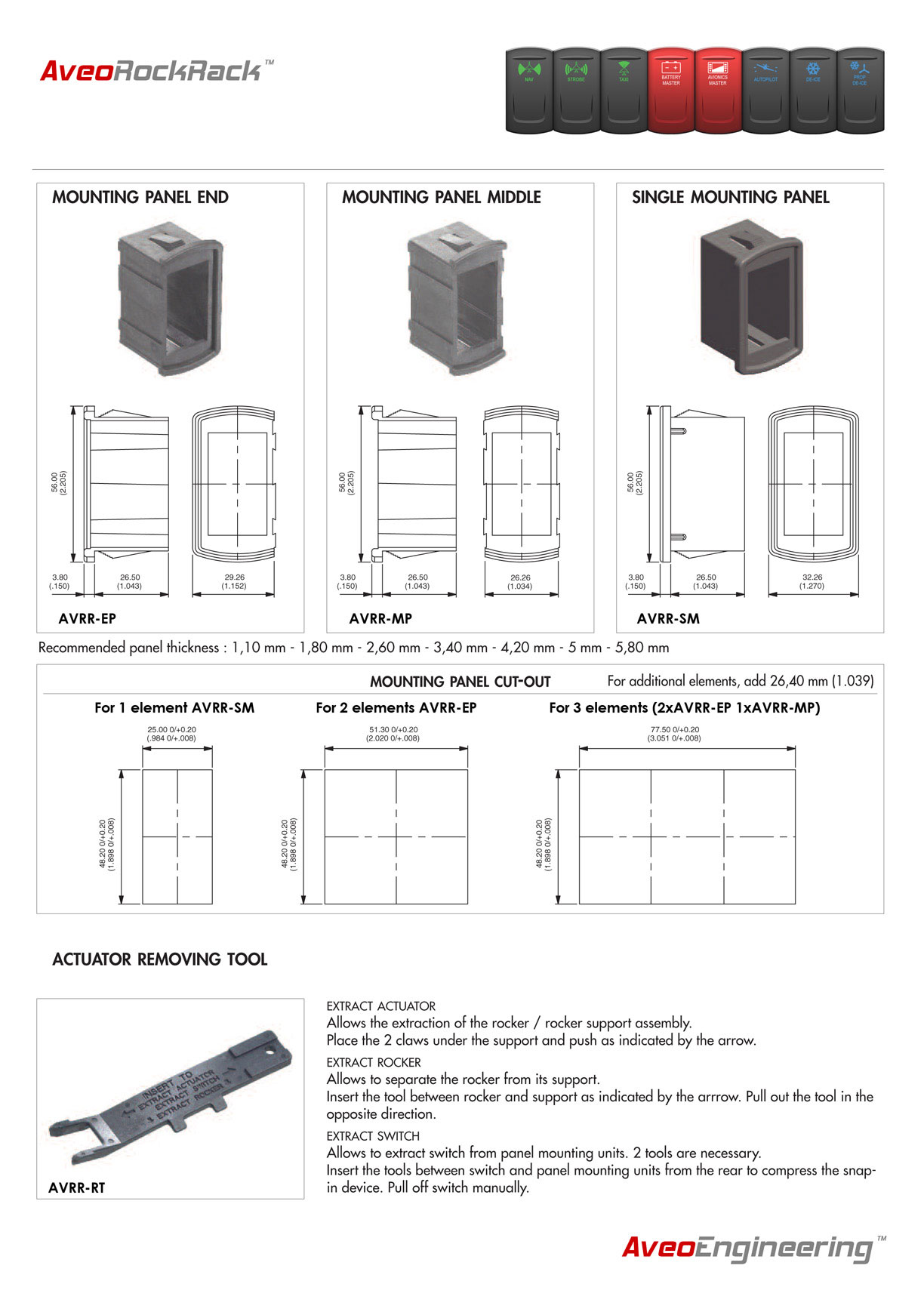

Drawing
Reviews
I have installeert several in my Impulse, The quality of the paint is not very good. I can not find the maximum current rating of the switches, the specifications are very poor,
I really liked the concept of these switches and the look, I bought a set for my RV-7A several years ago and I am just now getting around to installing them. Still in the original packaging, the left magneto switch cover is already starting to flake the paint. I also need 1 fuel pump switch cover but that can only be bought in one of the ten-pack Boeing 747 starter kits, I am thinking about painting all the covers flat black and labeling everything above the switches. I am committed having already spent the money but I am hugely disappointed with how they $5 and $10 you to death. (Thats nickel and dime you, except at aviation prices) there are less expensive options out there, these would be cool if better customization was offered.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The landing light switch cover is no longer available.
No, the Aveo rockrack switches are not approved for use in certified aircraft.
The () designates momentary, ie only on when pressed. So the postions would be:
On - Off - On (3 way switch)
On - On (2 way switch)
on - (on) (2 way switch, momentary on)
(on) - off - (on) - (3 way switch, off in middle, momentary on up or down)
