Flush Mount Adapter 15125 Blk
MFR Model# 15125 BLACK
Overview
|

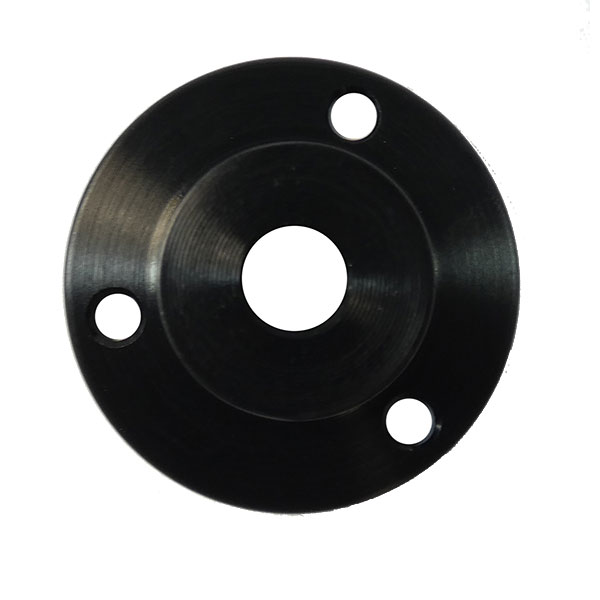

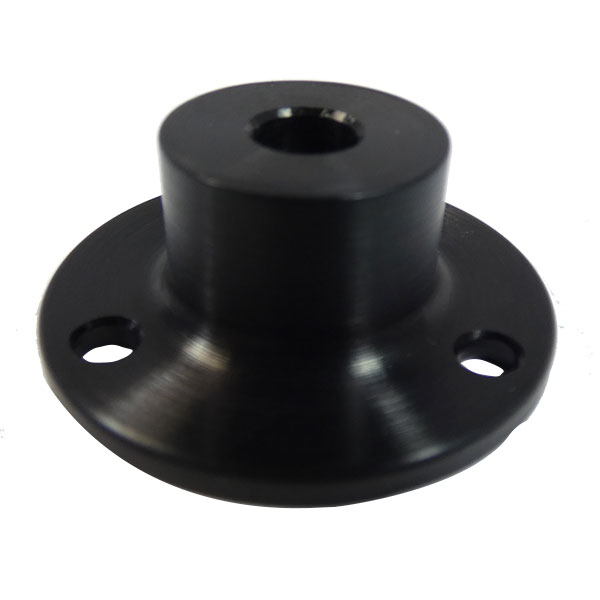

These versatile cockpit lights can be used to illuminate the instrument panel. They can be repositioned to illuminate your charts with their 110 degrees of angle adjustment while being able to rotate a full 360 degrees. Dimensions: 3/4" diameter, 1-5/8" tall fully-extended, 7/8" tall at 90 degrees. The mounting stud is 1/4" in diameter and can be mounted onto a surface up to .200" thick. Switchable models facilitate wiring an SPDT switch (not included) to the light, allowing either red or white operation. We also offer a flush-mount flange to mount the light if the back side of the light is unreachable. Flush Mount - (Pictured above) This part is for mounting and LED light Model 754 from the front side. The adapter base is 1-1/2" in diameter, stands 1-2" tall, and has a 1" bolt hole circle. |
Specifications
- 1. Place the mounting stud through the adapter hole.
- 2. Then, place the nylon washer & nut using a thin wall socket or needle-nose pliers.
- 3. Mount the adapter to any flat surface using #6 sheet metal or machine screws* (depending on your application).
- Note: *Screws not included.
Reviews
Nicely engineered. I used a backer plate as I was mounting on plastic post column. Would have been nice to include a backer plate but minor issue.
I just installed the Red/White version of this 754 LED as a dome light in my experimental Cozy. I used the dual pole switch per the easy-to-follow instructions and now have selectable Red instrument lighting for night flight and a white flood light. Instead of the flush mount, I used a 3X5 flat plate aluminum bracket (Manufactured by my hangar neighbor, Doug) bolted to the canopy bow between the headrests. This is not a cheap plastic part! It has a very solid, robust metal housing that swivels and pivots to cast the light right where you want it. Unbeatable price for the form, fit, function and ease of installation. Al
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The products on this page are only mount adapters, not the entire light assembly. These are to be used along with the 754 Series LED Cockpit Lights, such as part # 11-04393. The 754 Series LED Cockpit Lights can be dimmed with a dimmer.
No, this light does not have any FAA Approval.
