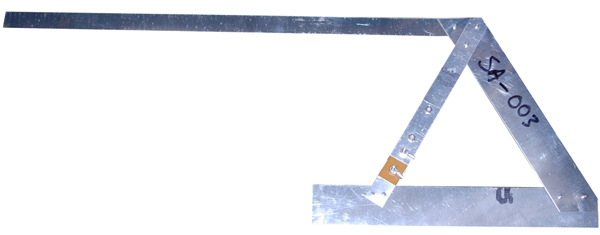

Wing Tip VOR Ant Lt Model 3

$186.75/Each
Part# 11-21010-1
MFR Model# SA-003-1

Overview

These antennas have been designed by Bob Archer from Torrance, CA utilizing concepts common to military aircraft and space vehicles. The antenna performance is superior to most in use today in private aircraft. The only requirement for max. Performance is that the antennas must be installed in accordance with the installation instructions. These antennas are designed to be installed inside fiberglass or other non-conductive wing tips or tail caps of metal or other conductive material aircraft.

Model 3:
Wing tip VOR antenna of same general design as the Model 1 but of a narrower design to fit Mooney tips with internal dimensions of 8" x 24". VSWR less than 2.0:1 over the frequency band of 108 to 118 Mhz.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this MODEL 3 antenna compatible with a Lancair, composite aircraft?

This antenna is designed to be installed inside fiberglass or other non-conductive wing tips or tail caps of metal or other conductive material aircraft.

Q: How does the cable attach to this antenna?

It is crimped to the supplied connectors.
