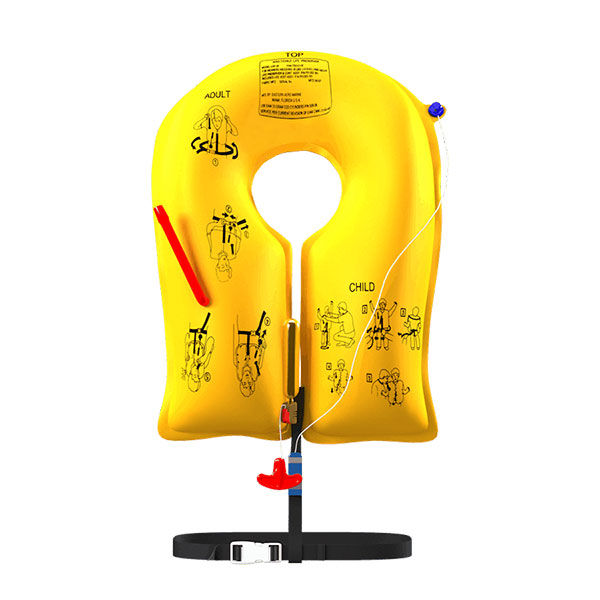

EAM Uxf-35 Life Vest

$102.75/Each
Part# 13-12679
MFR Model# P01202-101

Overview

Note: The 10 year vest includes a whistle.

This single cell vest is the lightest weight aviation vest in the world, weighing only .9 lbs (410 grams).

10 year frequency of inspection. Standard 5 year version also available (P/N 12-02355).

TSO-C13f Approved.

Download the Technical drawing

Specifications

  • Inflated Buoyancy: 35 lbs. (150 Newtons) minimum
  • Inflated Volume:970 cu. in. (16 liters) minimum
  • Approvals: US FAA TSO-C13f approved; United Kingdom CAA Approval No. AR01504; Europe EASA-ETSO-C13f; Italian ENAC Approval.
  • Category of Preserver: Adult/Child Combination
  • Weight of wearer: 35 lbs. (15.91kg) and above
  • Inflatable Buoyancy Cell: Single Cell
  • Material: Urethane Coated Nylon, Flame Retardant
  • Construction: RF Heat Sealed Seams
  • Inflation System: Manual CO2 Inflator and an Oral Inflation Tube.
  • Color: Passenger Yellow or Crew Molten Orange
  • Temperature: Functional Range: -40 to 140 oF (-40 to 60 oC); Storage Range: 0 to 120 oF (-17.8 to 48.9 oC)
  • Humidity: Functional Range: Up to 95% Relative Humidity; Storage Range: Up to 70% Relative Humidity
  • Altitude: -2000 to 45,000 feet above sea level
  • CO2 Gas Charge: 1 x 0.073 lbs. (1 x 33 grams)
  • Survivor Locator Light: Water-activated. TSO-C85 Approved.
  • Service Life: Indefinite if unit continues to pass periodic maintenance inspection.
  • Frequency of Inspection: Every 60 months for P01202-1XX Assys. in Standard Polybag; Ten (10) year frequency available in special Extended Shelf Life packaging.

Reviews

Very prompt shipping. Arrived just in time for trip to OSH across Lake MIchigan. I hope I never have to find out how well it will work.

Mark W Verified Purchase

EAM Uxf-35 Life Vest

August 3, 2021

I originally ordered two of these online. After completing the order, I realized I wanted to add one more to my order. Aircraft Spruce makes it easy to modify online orders. I did so and everything worked out great. The flotation devices arrived as ordered and seem to be great.

Don M
June 29, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are there covers for these that allows them to be worn while in pouch form?

No, we are not aware of any covers for these life vests.
