Tin Plated Cresent Sleeves 3/32 SL2-3Tp MS51844-83
MFR Model# SL2-3TP
- JUMP TO
- Overview
- Documents
- Accessories
- Reviews
- Q&A
|
Model No. | Our Part No. | Cable Size | Sleeve Type |
|---|---|---|---|
| MS51844-83 | 15-05074 | 3/32 | Tin Plated |
Overview
|

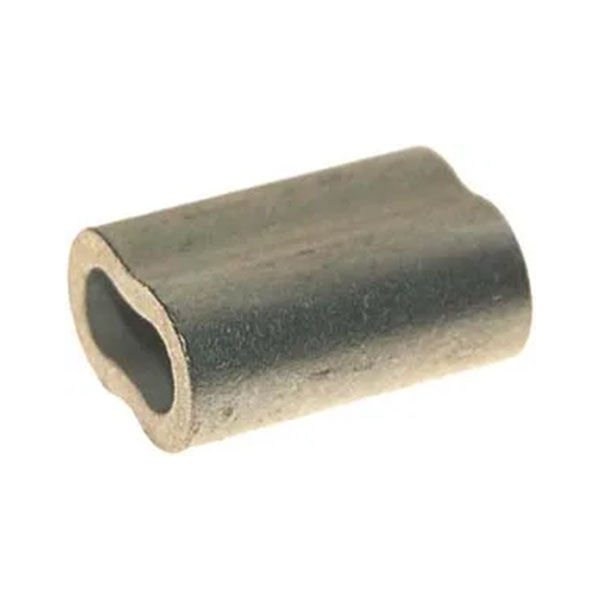

Oval shaped copper sleeves used in making eye or lap splices in flexible cable. Sleeves are slipped over the two strands of cable to be fastened and are then compressed with special Nicropress hand squeezers. Provides a bond that is even stronger than a standard splice. Plain copper and zinc coated sleeves are used with galvanized cable, and tin coated sleeves are to be used with stainless steel cable.
Refer to the documents tab for more details on these sleeves. |
Documents
- Technical Data Sheet (PDF)
Reviews
Exactly what I needed, hassle free ordering and at a fair price!!!
Perfect!!. Excellent tightening quality
Verified Purchase
Tin Plated Cresent Sleeves 3/32 SL2-3Tp MS51844-83
Good product ,good service fast delivery
Great!!!
Great product.
Worked very well.
Perfect! Perfect size and clean, ready to install.
Very nice product, speedy delivery
Just what I needed
Good pricing!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Tin coated sleeves are used with stainless steel cable.
The 3/32 oval swage (15-05074) is 3/8" long and the 1/8 oval swage (15-05075) is 5/8" long
We have several installation tools to choose from. They are on page 775 of the 2013-2014 catalog. 12-12000, 12-12100, 12-12200, 12-12400, 12-00222, 12-02560, and 12-02561 are examples (see accessories). Verify the size tool will work with the sleeve to be used.
These swages are copper sleeve with tin plating.
The proper cable sleeve swaging procedures are explained and illustrated in the FAA 43.13 acceptable, methods and practices publication.
See part # 04-01634
You will need P/N# 15-09446 for this gauge of wire.
No, you would want to use the correct sized sleeves for the cable. We have 1/16" sleeves under part number 05-03288 in copper and 15-09444 for tin plated.
You would use zinc or tinned sleeves on stainless cables to avoid some corrosion issues.
