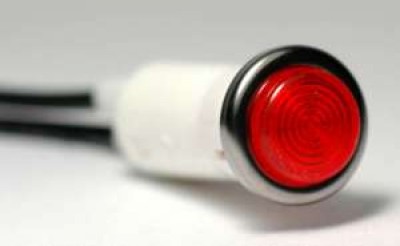

Dash Light # 17-465

$16.50/Each
Part# 17-165
MFR Model# 17-465

Overview

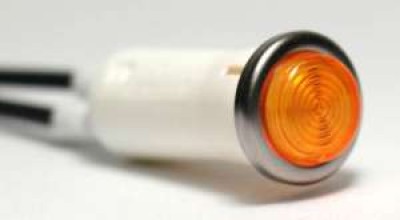

Dash light non-replaceable lamps (5" wire leads). 1/2" and 5/32" sizes available. Colors include Red, Green, and Amber.

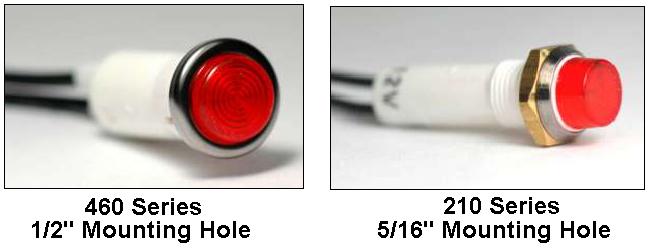

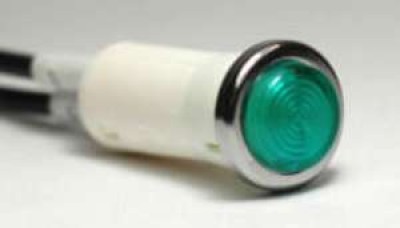

1/2" Mounting Hole Specs
  • Chrome Bezel .635" Diameter
  • Snap-In Mounting
  • .500" mounting hole
  • Panel thickness up to .044 inch
  • Non-replaceable bulb
  • 12 volt / 2 watt / .15 amp
  • 5 inch wire leads

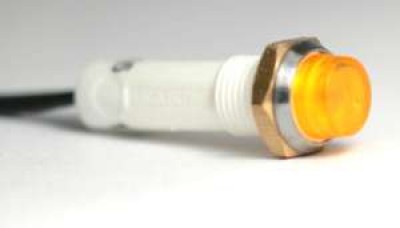

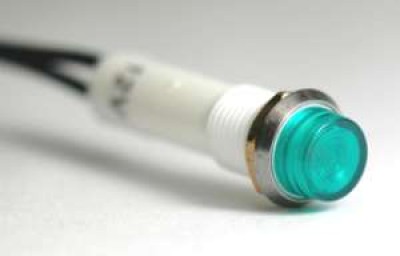

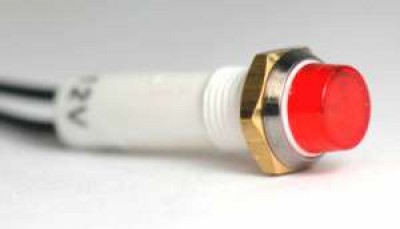

5/16" Mounting Hole Specs
  • Chrome Bezel .375" Diameter
  • Hex Nut Fasteners
  • Panel thickness up to .125 inch
  • Non-replaceable bulb
  • .312" mounting hole
  • 5 inch wire leads

Reviews

Pilot I Verified Purchase

Dash Light # 17-465

September 18, 2024

It works

Don F
May 19, 2021

Very small, easy to install

Jerry K
March 8, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these dash light replacement bulbs 12v or 24v?

These are 12v bulbs.

Q: Is the brightness adjustable?

No. The brightness is not adjustable.
