Eaton Aeroquip Hose 303-10 5/8

$31.50/Foot
Part# 303-10
MFR Model# 303-10
DescriptionTubing SizeHose IDMax PSIWgt/FtPart No.
Aeroquip 303 Hose5/81/21750.372303-10

Overview

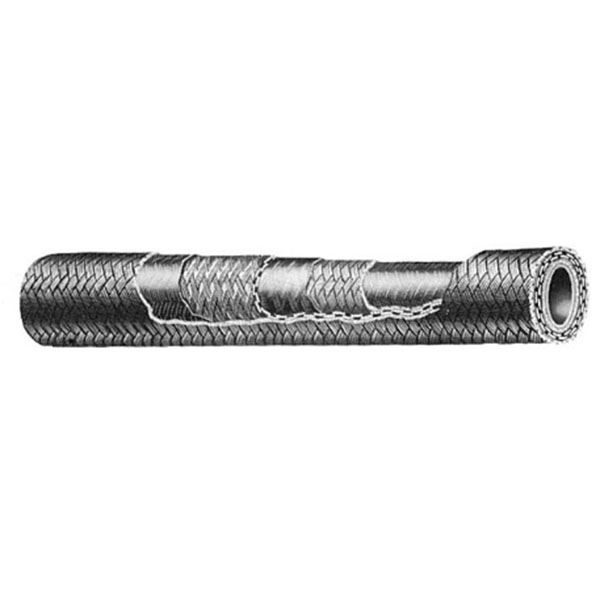

This standard hose is used in medium pressure A/C hydraulic, fuel, oil and coolant systems. An inner tube of seamless synthetic rubber is reinforced with a synthetic-impregnated single-wire braid over a single cotton braid and an outer cover of synthetic-impregnated oil-resistant cotton braid. Operating temperature -65 to 250F. Conforms to MILH-8794 (supersedes MIL-H-5511A). Used with Aeroquip 491 hose fittings. Sold by the foot.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Great product, requires some muscle to get the hose ends to start. My advice, buy the mandrels for the hose size you are using. Without the mandrel you will most likely create a flapper valve on the inner wall of the hose and cause oil or fuel starvation. Use lots of oil in the hose and on the fittings during assembly. The 303 hose will most likely outlive the installer, its a solid and reliable product.

Phillip C
April 23, 2022

Tough stuff! But worth it!

Tom W Verified Purchase

Eaton Aeroquip Hose 303-10 5/8

July 27, 2021

Good

Bill
May 20, 2021

Hose worked fine and will last a long time!

Jonathan S
May 19, 2021

Just what I needed

Matthew P
April 17, 2021

Arrived quickly and is perfect for manufacturing my replacement brake lines,

Greg
March 16, 2021

Easy to work with.

Mitchell I
February 10, 2021

just what I ordered, a length of 303 hose

Dan C
September 4, 2020

Areoquip 303 hose does the job in my cherokee.

Steve
March 19, 2020

This is the ticket for replacing fuel lines in early, six cylinder Cessnas. I tape where I’ll be cutting it with a couple layers of tightly wrapped masking tape, then cut it with a fine toothed, bi-metal hacksaw. I then peel off the tape and trim back the outer cotton wrap and steel braiding about 1/8” and it’s ready to be screwed into the fitting: counter-clockwise (lefty-tighty). use plenty of oil on the inner fitting before you thread that inside the hose: clockwise (righty tighty). Use a mandrel! If you’re too broke to buy a new one, watch eBay for a used one, or borrow one.

Andy G
December 8, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this hose have a shelf-life?

Yes, the factory gives an 8 year shelf life on 303 hose.

Q: Can you use regular AN fittings on this Aeroquip 303 hose?

No, Aeroquip 303 hose requires 491 Aeroquip fittings.

Q: If this hose is used for fuel line, and is installed within its shelf life, is its installed service life limited to 8 years before needing replacement?

Eaton recommends you replace the 303 hose after 5 years of service.

Q: Is the Aeroquip 303 hose priced and sold by the foot?

Yes, it is priced and sold by the foot.

Q: Does the Aeroquip 303 hose contain any metal or wire? Is it conductive?

The tech data sheet shows the Aeroquip 303 hose has a carbon steel wire braid reinforcement. It does not give any information regarding how conductive it may be.

Q: Do you still need to use fire sleeve for this Aeroquip 303 hose?

It is up to you if you would like to use a firesleeve on this hose or not. It will all depend on your application if you were to need a firesleeve. If you were to get a fire sleeve for hose 303-4 for example, you will need to get P/N# 05-01843.

Q: Does this hose use the same fittings as the stratoflex 111 hose?

It is recommended to use Stratoflex fittings with Stratoflex hose, and Aeroquip fittings with Aeroquip hose. The Aeroquip 303 and Stratoflex 111 are equivalent to each other, and some have used parts interchangeably, but we have no documentation as to how well they will work.

Q: How long is this Aeroquip 303 hose?

This hose is priced and sold by the foot. When you enter quantity, you are entering the number of feet you would like to order.

Q: What is the OD of 303-3 hose?

0.453 OD.

Q: Is this 303 hose compatible with fuels that contain ethanol?

303 hose has an excellent resistance rating to ethanol per Eaton's fluid compatibility chart.
