Model No. | A | B | L | Grommets & Snap Rings | Springs | Cat # |
---|---|---|---|---|---|---|
121J-W430-Z3C | .250 | .100 | .300 | GA4-225, 250, 275, 300 GP4B, GH4 SR5SS SX-523SS | S4-200, 225 | AJW4-30 |
(A, B, L dimensions for AJW are same as for AJ; P, Q, R dimensions given are for wing head) CAD PLATED FASTENERS ARE NO LONGER AVAILABLE DUE TO ENVIROMENTAL REASONS. *No longer available after our current stock is depleted. Please order next longer size. |
we received the order on time, no issues with part or paper work.
I am happy that studs were available. Super fast shipping, Excellent dimensional guide on the web. I had to contact Customer Support to correct my mistake and got immediate response to my request. Thank you for outstanding service!
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

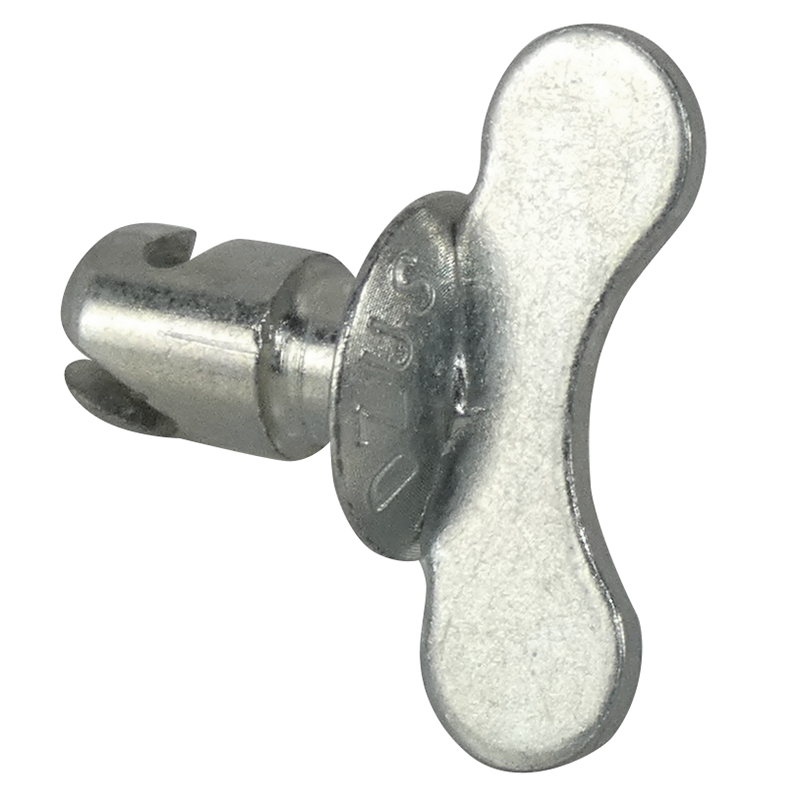

The prices listed here are for the wing head stud only. Our part number for the wing head stud is AJW4-40. The current price of $3.55 is for one wing head stud. (May 7, 2013)
We offer the installation "C" clamp, p/n 12-02272, to use with specific size grommet dies, to install Dzus studs, but we do not have any removal tools.
