Model No. | Part No. | Price | Buy |
---|---|---|---|
1219-3150-Z3CT | S3-150 | $2.95 | |
1219-3175-Z3Y | S3-175 | $3.35 | |
1219-3200-Z3Y | S3-200 | $5.60 | |
1219-3225-Z3Y | S3-225 | $5.35 | |
1219-4220-Z3Y | S4-200 | $2.04 | |
1219-4225-Z3Y | S4-225 | $2.04 | |
1219-4250-Z3Y | S4-250 | $1.91 | |
1219-A4200-Z3Y | S4A-200 | $2.04 | |
-- | S5-325-SURP | $1.14 | |
1219-A5200-Z3Y | S5A-200 | $2.65 | |
1219-A5225-Z3Y | S5A-225 | $3.50 | |
1219-A5250-Z3Y | S5A-250 | $3.60 | |
1219-A5275-Z3Y | S5A-275 | $2.65 | |
1219-5300-Z3Y | S5A-300 | $3.40 | |
1219-6225-Z3Y | S6A-225 | $3.90 | |
1219-6250-Z3Y | S6A-250 | $9.80 | |
1219-6275-Z3Y | S6A-275 | $6.95 | |
1219-6300-Z3Y | S6-300 | $5.90 | |
1219-6400-Z3Y | S6A-400 | $11.75 | |
1219-6425-Z3Y | S6A-425 | $5.35 | |
1219-6325-Z3Y | S5A-325 | $3.40 | |
1219-7250-Z3Y | S7-250 | $9.70 |
The dash number represents the height ("H" dimension) of the spring. EXAMPLE: S3-150 = .150. All DzusŪ products are available. Request quote on unlisted items. |
+++++
Dzus Springs S5A-200
Dzus spring worked perfectly as expected.
Dzus Springs S5A-225
Dzus Springs S5A-275
Fit perfect. Thanks for the tech support
Dzus Springs S5A-250

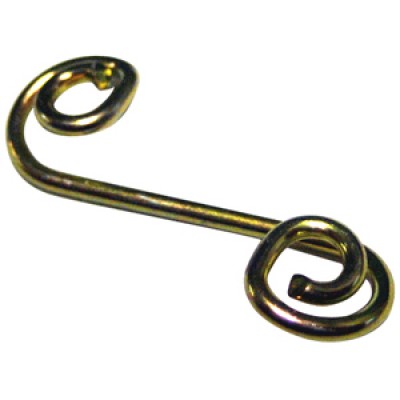

S3-150 Type Small Spring Receptacle Cad
Dzus Springs S5A-225
Very accurate and well made.
Dzus Springs S4-225
as advertized
Dzus Springs S5A-200
Dzus Spring S6-250
Dzus Spring S6-275
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The S5A-225 the ( A ) is for automatic. Designates the machine it went on at DFCI. Dimension-wise, they are the same. Southco purchased DFCI and own "Dzus" trade name.
It should be D4-S6-275 and our part number is S6A-275.
.10 id and .647 center to center.
That would depend on what size studs you are using.
3/4 of an inch. All the s4 will have the same center to center, just the height would be different.
This measures to .082".
