Steel AN Fitting AN822-4-4

$38.50/Piece
Part# AN822-4-4
MFR Model# AS5195-0404
Size No.
Steel
Size No.
Alum
Tube
O.D.
Thread
Size
4-44-4D1/41/4

Overview

AN822
(MS20822)

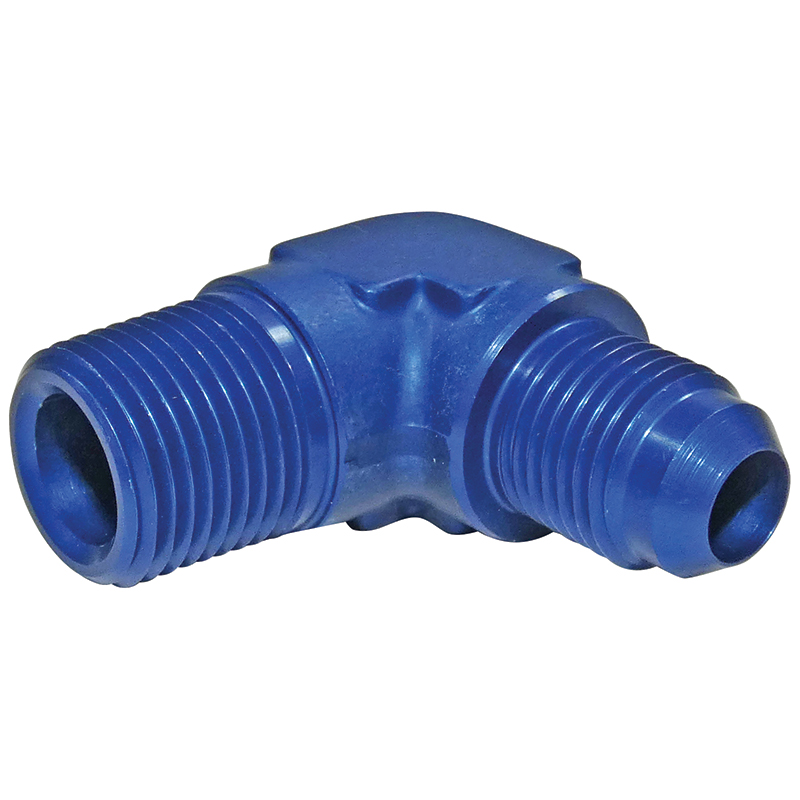

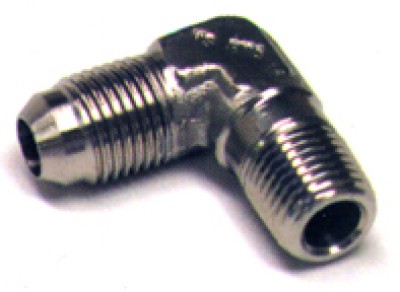

ELBOW, Flared Tube and Pipe Thread, 90°
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

just as ordered

Mike K
January 20, 2021

👍

Mike L
October 21, 2020

These fittings are well packaged, arriving clean and ready to use.

David H
June 30, 2020

Arrived the next day. The part was Exactly what I was expecting

Frank W
March 20, 2020

good quality AN fittings

Monte H
December 7, 2019

Got it on time and was what I wanted

Bob
October 17, 2019

I live in Michigan. My order was shipped from Georgia. It would be nice to order parts from Chicago.

Ross B
September 20, 2019

As advertised - a good product If used with a MANIFOLD AL FITTING FAB-2(-X-X) FAB-3 FAB-4 or FAB-5 the spaces between the holes on the manifold are too close to allow you to screw them into the manifold in adjacent holes.

George
March 1, 2018

Appreciated that ACS stocked the -2 size. Larger sizes are relatively easy to find but the -2 size is not common.

Bruce B
December 30, 2017

Used on our RV-14 and worked exactly as expected.

Stephen H
October 12, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: If we needed manufacturer certs, can that be provided for these fittings? Or some type of trace?

Yes, please request hardware certs at the time of order. It is available as a check box in the shopping cart.

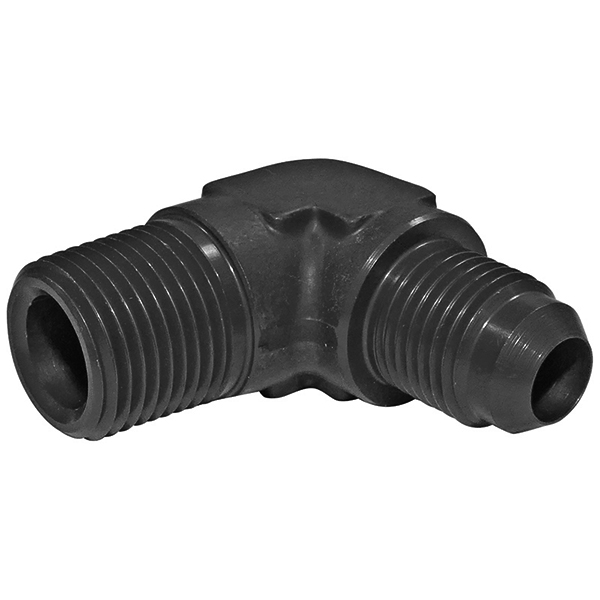

Q: Are the steel versions stainless?

No, the steel versions listed on this page are carbon steel.

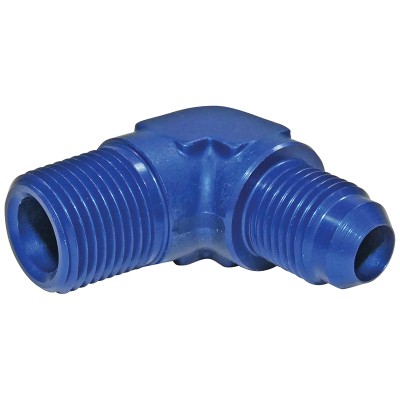

Q: What is the difference between the different versions of AN822-6D, 6-2D and 6-6D?

They are all 3/8 on the flare(tube side) but the 6D is 1/4npt the 6-2D is 1/8 npt and the 6-6D is 3/8 npt.

Q: Is there a difference between MS20822-4D and AN822-4D? Are they interchangeable?

There is no difference as these are the same part.

Q: Are these aluminium fittings weldable?

No, these fittings are anodized.
