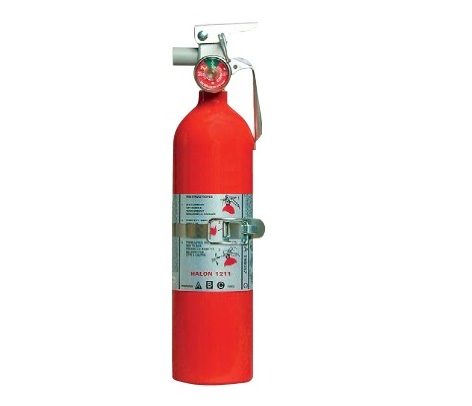

PRT Fire Extinguisher Model 1600

0 Reviews 1 Answered Question
$867.00/Each
Quantity
Add to Wishlist
Part# 13-07665
MFR Model# A1600

Overview

MODEL 1600 - Halon 1211
Typical use: Cockpit/Cabin

The 1600 offers a superb firepower to weight ratio. Aluminum construction helps this model achieve a gross weight similar to many 2.5 lb models, despite the fact that it contains 40% more Halon 1211.

Extinguishing Agent  1211
Halon Charge lbs(kgs)  3.5(1.6)
Gross Wt lbs(kgs)  4.4(2.0)
ULC Fire Rating  1A:5BC
Pressure psig  100
Shell Dia-inches  3.15
Unit Height inches  14
Shell Material  Aluminum
Handle Material  Aluminum


1600, contain a unique blend of liquefied gas 1211/1301 which results in a more effective fire fighting agent.
(Incendex is a registered trade mark of Protection R.T. Inc.)
These 1211/1301 commercial extinguishers can continue to operate adequately even with loss of inert gas propellant, due to the unique blend used.

Substantial savings, many times sufficient to pay out the unit within 6 years, results from the fact that no 6 & 12 year maintenance is required.

In addition to this blend having remarkable properties, Incendex portable extinguishers are light-weight, easy to operate and extremely reliable. They are made with corrosion resistant aluminum shells and handles and come complete with brackets or wall hooks.

Specifications

  • Agent weight 3.5 lb. / 1.600 kg
  • Gross weight 4.4 lb. / 2.000 kg
  • Discharge range 8-10 ft. / 2.4 - 3.0 m
  • Discharge time 11-13 sec.
  • Height 13.8 in. / 34.8 cm
  • Width 3.3 in. / 8.4 cm
  • Cylinder diameter 3.0 in. / 7.6 cm
  • UL rating 1A:5B:C
  • Bracket Single Strap (Standard)

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this PRT A1600 considered dangerous goods for shipping?

Yes, this is considered HAZ 1044 for shipping.
